Windshield Sticker Placement Guideline (01-174-16)

WINDSHIELD STICKER PLACEMENT GUIDELINE

TECHNICAL SERVICE BULLETIN

APPLICABILITY

All 2017 MY Vehicles Equipped with EyeSight® and High Beam Assist (HBA) Features

INTRODUCTION

This Service Information bulletin provides a guideline to use for placement of required or mandated windshield stickers (inside and / or outside) on vehicles equipped with EyeSight Driver Assist Technology and High Beam Assist (HBA) features. Examples of these types of stickers include:

• Government facility / Military base access stickers
• State-mandated Vehicle Safety Inspection and Emission Compliance stickers
• Parking Permit Stickers

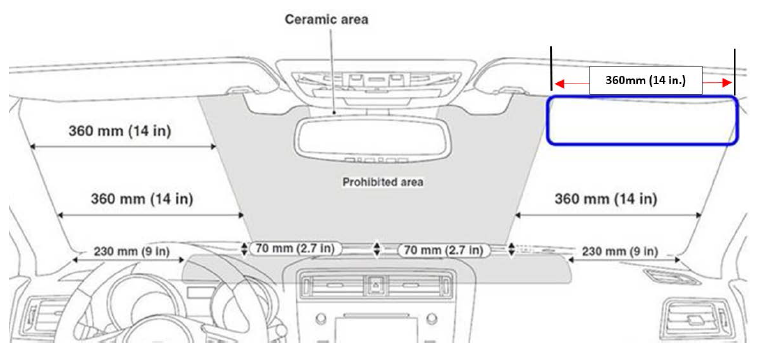

The cameras used by both of these features require a clear, unobstructed "view" through the windshield for their proper operation. The illustration below shows the "Prohibited area" in gray. Any stickers mandated to be placed within the Prohibited area should be placed to the right of the EyeSight stereo camera and HBA camera, outside of the Prohibited area as shown in the illustration below. Viewed from inside the vehicle, the left edge of the sticker must be placed no more than 14 inches (slightly less is preferred as a "cushion" for measuring variation) from the right edge of the windshield as shown in the illustration and indicated by the box outlined in blue. Always consult state and local regulations applicable to windshield sticker placement.

IMPORTANT REMINDERS:

• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.
