Engine Wiring Harness-Design Change (07-146-19R)

Publication date: 2019-11-06
Reference number: 07-146-19R
Supersedes refnos: 07-146-19

ENGINE WIRING HARNESS-DESIGN CHANGE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 07-146-19R, Date of Issue: November 06, 2019

SUBARU:

2015-2019MY WRX

APPLICABILITY

2015-2019MY WRX

INTRODUCTION

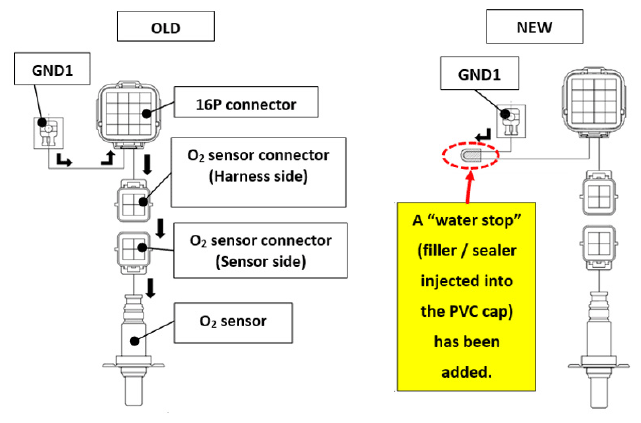

This bulletin announces a design change made to the engine wiring harness to improve resistance to moisture. A detailed illustration describing the change is supplied below.

PRODUCTION CHANGE INFORMATION

The new harness was incorporated into production starting with VIN K8806179 .

PART INFORMATION

Description	Part Number	Application
HARNESS-ENGINE	24020AF983	2015-17MY
HARNESS-ENGINE	24020AG431	2017-19MY

NOTE: This part change was made during 2017MY production therefore, always order the most up-to-date part number based on the specific VIN of the vehicle being repaired.

SERVICE PROCEDURE/INFORMATION

REMINDER: Customer satisfaction and retention starts with performing quality repairs.

The service procedures for replacing the engine wiring harness remain unchanged. Always refer to the applicable Service Manual and review the full requirements of the repair being performed. The Service Manual procedures contain information critical to performing an effective repair the first time, every time. This information includes but is not limited to: important SAFETY precautions, proper inspection criteria, necessary special tools, required processes and related one-time-use parts needed for a complete and lasting repair.

WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Classic or Gold plan, this repair may be submitted using the following claim information:

Labor Description	Labor Operation #	Labor Time	Fail Code
ENGINE WIRING HARNESS DIAGNOSIS & REPAIR	B880-159	ST	VKA-48
ENGINE WIRING HARNESS R&R	C880-151	2.1	VKA-48

IMPORTANT REMINDERS:

SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
Always refer to STIS for the latest service information before performing any repairs.
