Section 3 (Continuously Variable Transaxle (CVT) (Diagnostics)): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.

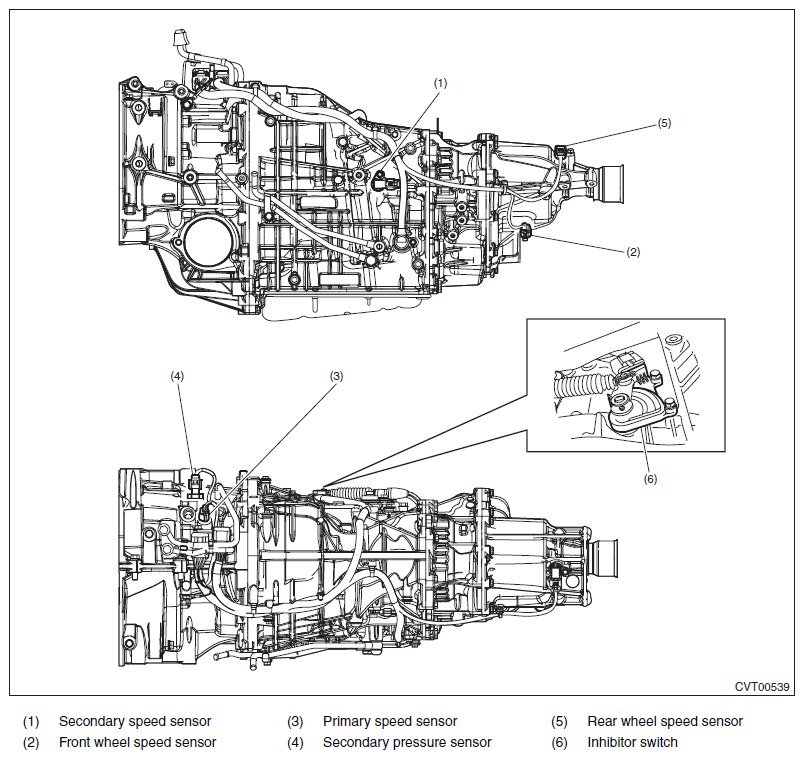

Fig 1: Sensor Electrical Component Location
G11578045Courtesy of SUBARU OF AMERICA, INC.
