AT Shift Lock Solenoid and "P" Range Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Connect the solenoid unit terminals.

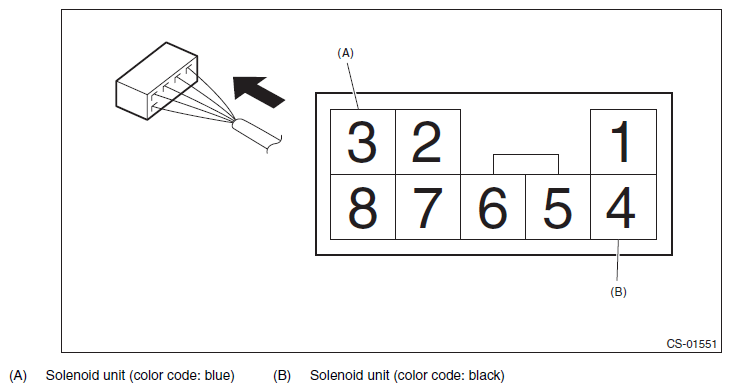

Fig 1: Connecting Solenoid Unit Terminals
G11577379Courtesy of SUBARU OF AMERICA, INC.
