Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

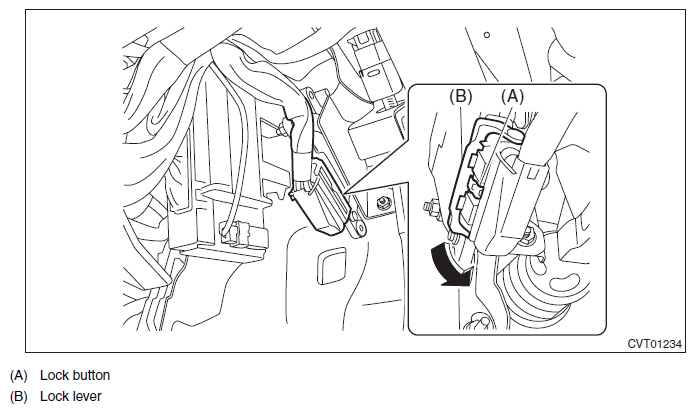

    Fig 1: Moving Lock Lever
    G11577714Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the TCM.

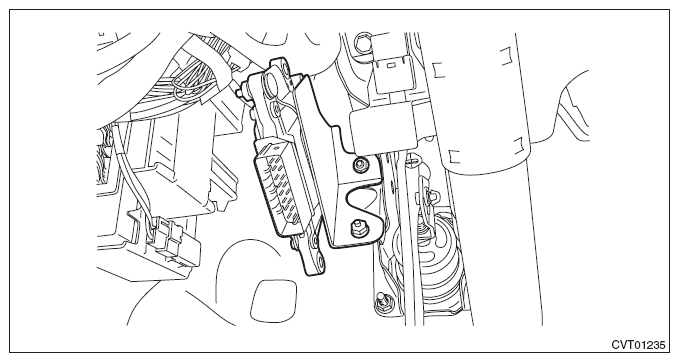

    Fig 2: TCM
    G10218662Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM from the bracket.

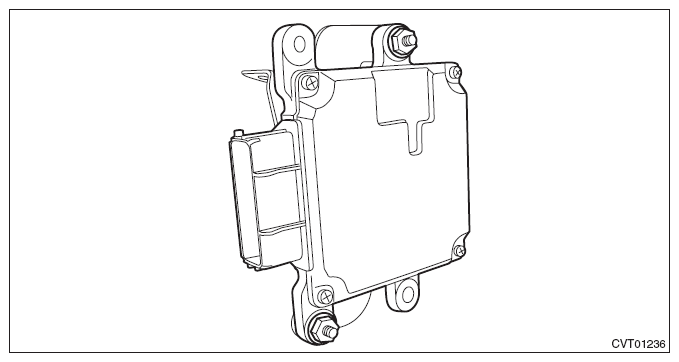

    Fig 3: TCM From Bracket
    G10218663Courtesy of SUBARU OF AMERICA, INC.
