Transmission Control Device: Installation

WARNING: This page is about a different variant/trim than selected.

Install the detent spring.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Removing Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

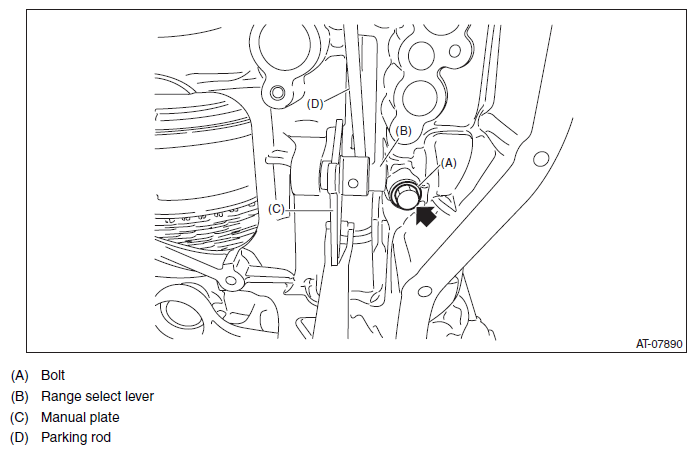

Fig 2: Locating Manual Plate, Parking Rod, Range Select Lever And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

Fig 3: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. <Ref. to INHIBITOR SWITCH .>
Adjust the inhibitor switch. <Ref. to INHIBITOR SWITCH .>
Install the control valve body and oil pan. <Ref. to INSTALLATION , Control Valve Body.>
Install the transmission assembly to the vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
