Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the CVTF filter.
NOTE:
- Use a new CVTF filter.
- Apply CVTF to the CVTF filter.
- Make sure that the CVTF filter does not protrude from the transmission case.
Fig 1: Locating Oil Pan Mating Surface And Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the oil seal.
ST 18657AA000 INSTALLER

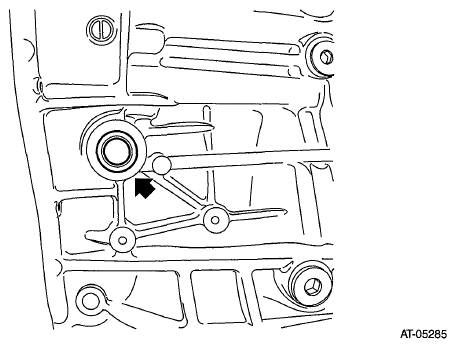

Fig 2: Removing Oil Seal Using Screwdriver Wrapped With Cloth
Courtesy of SUBARU OF AMERICA, INC.

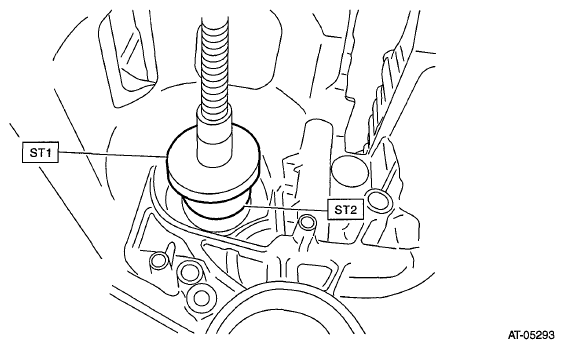

Using ST1 and ST2, install the ball bearing on the reduction gear side.
NOTE: Use a new ball bearing.

ST1 398177700 INSTALLER

ST2 499755602 PRESS SNAP RING

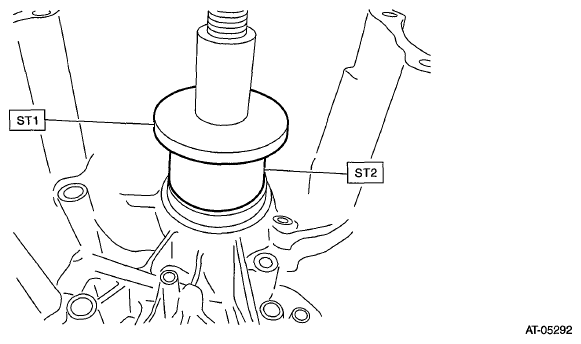

Fig 3: Installing Ball Bearing On Reduction Gear Side
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the roller bearing on primary pulley side.
NOTE:
- Use a new roller bearing.
- Make adjustment so that the press gets in contact with the center of ST2.
ST1 398177700 INSTALLER

ST2 20299AG010 BASE

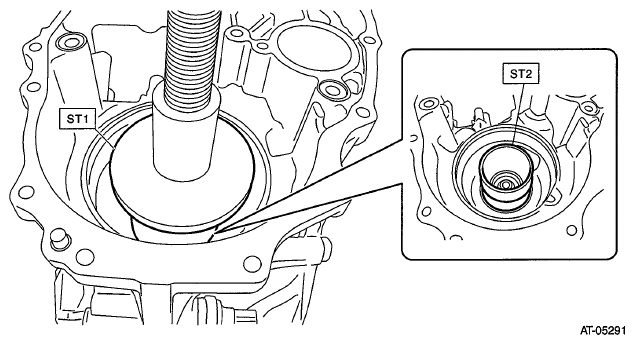

Fig 4: Installing Roller Bearing On Primary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring on primary pulley side.
NOTE: Use new snap rings.

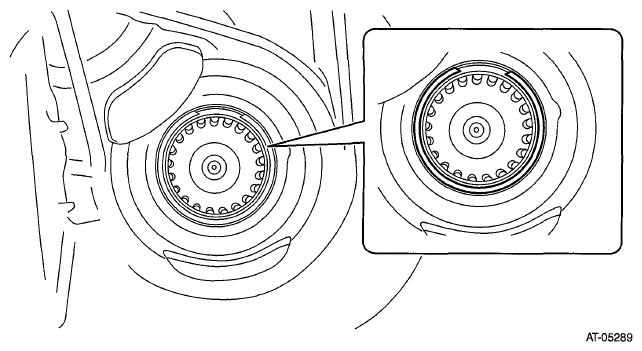

Fig 5: Removing Snap Ring On Primary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the roller bearing on secondary pulley side.
NOTE:
- Use a new roller bearing.
- Make adjustment so that the press gets in contact with the center of ST2.
ST1 398177700 INSTALLER

ST2 499755602 PRESS SNAP RING

Fig 6: Installing Roller Bearing On Secondary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring on secondary pulley side.
NOTE: Use new snap rings.

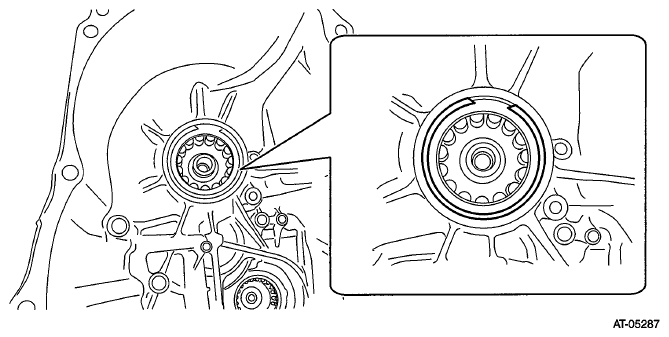

Fig 7: Removing Snap Ring On Secondary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Install all plugs.
NOTE: Use new gaskets and O-rings.

Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T3: 35 N.m (3.5 kgf-m, 25.8 ft-lb)

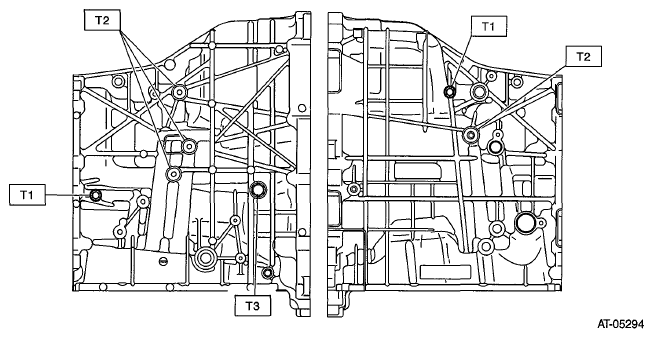

Fig 8: Installing Plugs
Courtesy of SUBARU OF AMERICA, INC.
Install the lubrication pipe and O-ring.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

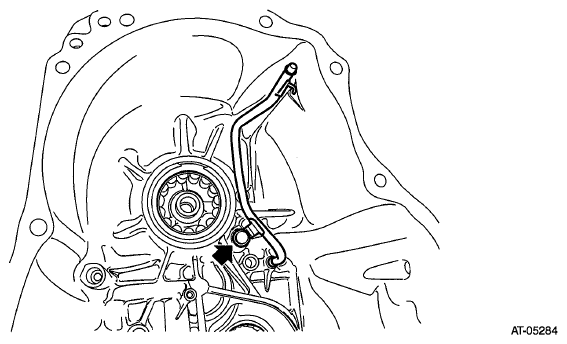

Fig 9: Removing Lubrication Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF inlet pipe and CVTF outlet pipe.
NOTE: Use a new gasket.

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

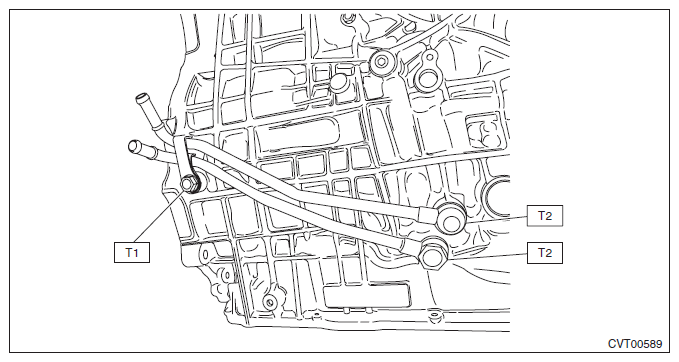

Fig 10: Installing CVTF Inlet Pipe And CVTF Outlet Pipe
Courtesy of SUBARU OF AMERICA, INC.
