Transfer Reduction Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the new ball bearing (large) to reduction driven gear using the ST.

    ST 499277100 BUSHING 1-2 INSTALLER

    NOTE:
    • Use a new ball bearing.
    • Install to the splines inside transfer reduction driven gear shaft.

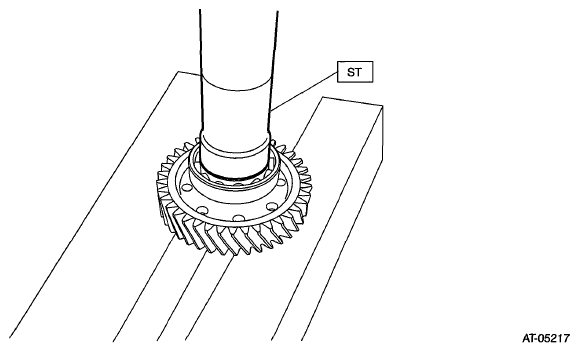

    Fig 1: Installing Ball Bearing (Large) To Reduction Driven Gear
    G06654536Courtesy of SUBARU OF AMERICA, INC.
  2. Install the new ball bearing (small) to reduction driven gear.
    NOTE: Use a new ball bearing.

    ST 499277100 BUSHING 1-2 INSTALLER

    Fig 2: Installing Ball Bearing (Large) To Reduction Driven Gear
    G06654536Courtesy of SUBARU OF AMERICA, INC.
  3. Install the snap ring to the transfer reduction driven gear.
