Transfer Reduction Driven Gear: Adjustment

WARNING: This page is about a different variant/trim than selected.

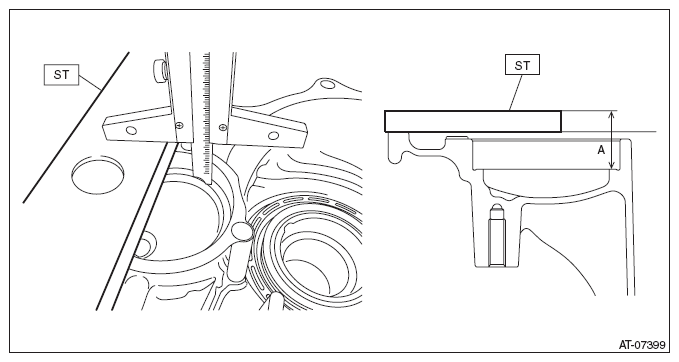

Measure depth "A" from the ST upper face to the ball bearing catch surface.
ST 398643600 GAUGE

Fig 1: Measuring Depth A From ST Upper Face To Ball Bearing Catch Surface
Courtesy of SUBARU OF AMERICA, INC.

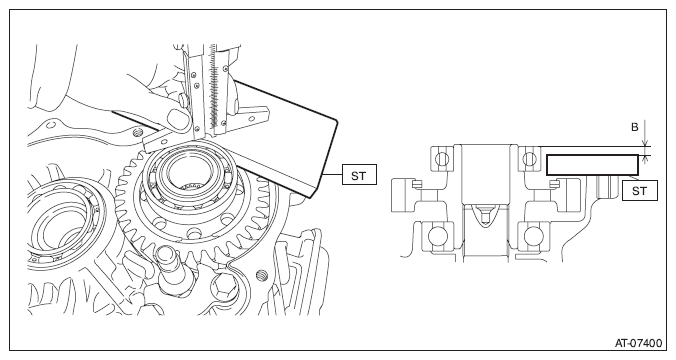

Measure height "B" from the ST to the end of the ball bearing outer ring.
ST 398643600 GAUGE

Fig 2: Measuring Height B From ST To End Of Ball Bearing Outer Ring
Courtesy of SUBARU OF AMERICA, INC.

Obtain the thickness of shim using the following formula to select one to three shims.

T mm = (A - 15) - (B + 15) + 0.38 - (0.05 - 0.25)

[T in = (A - 0.591) - (B + 0.591) + 0.0149 - (0.002 - 0.01)]

T: Shim thickness

A: Depth from the ST upper face to the ball bearing catch surface

B: Height from the ST to the end of the ball bearing outer ring

0.38 mm (0.0149 in): Thickness of gasket

15 mm (0.591 in): Thickness of ST

0.05 - 0.25 mm (0.002 - 0.01 in): Clearance
