Reduction Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the bearing retainer using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 18767AA000 BEARING REMOVER

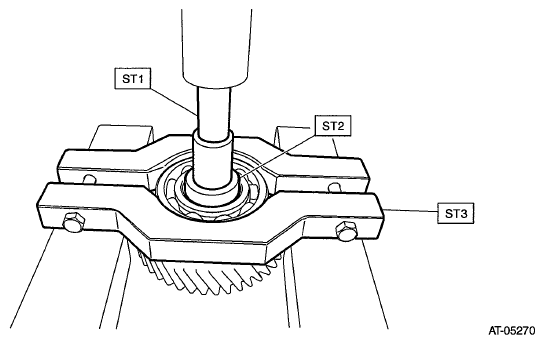

Fig 1: Removing Bearing Retainer Using ST1, ST2 And ST3
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

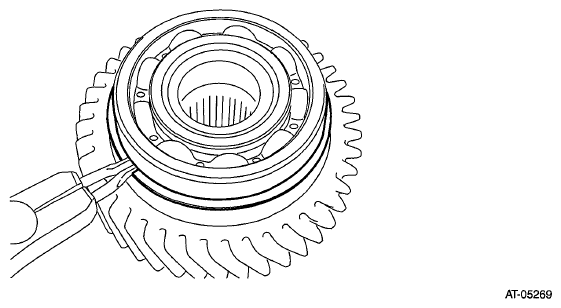

Fig 2: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 498077600 REMOVER

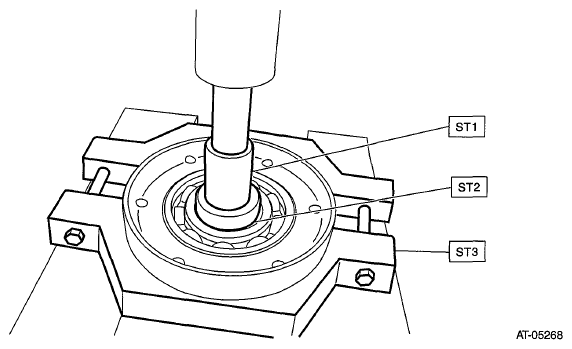

Fig 3: Removing Ball Bearing Using ST1, ST2 And ST3
Courtesy of SUBARU OF AMERICA, INC.
