Reduction Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST, install the ball bearing to bearing retainer.

    ST 398177700 INSTALLER

    NOTE:
    • Use a new ball bearing.
    • Make sure to install the ball bearing in the right direction.
    • Apply CVTF to the press-fitting area.

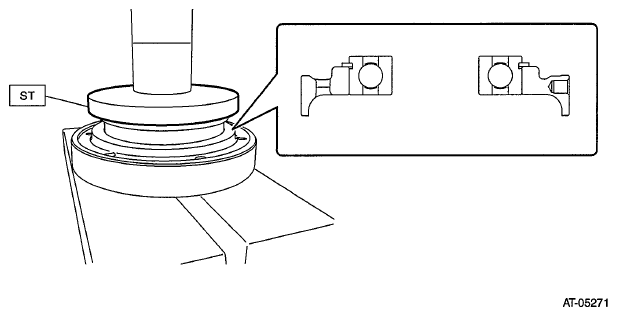

    Fig 1: Installing Ball Bearing To Bearing Retainer
    G06654613Courtesy of SUBARU OF AMERICA, INC.
  2. Install the snap ring.
  3. Using the ST, install the reduction driven gear.

    ST 499277200 INSTALLER

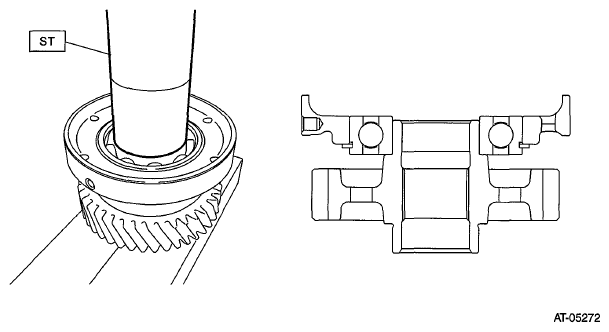

    Fig 2: Installing Reduction Driven Gear
    G06654614Courtesy of SUBARU OF AMERICA, INC.
