Rear Wheel Speed Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the rear wheel speed sensor.
NOTE: Use new O-rings.

Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

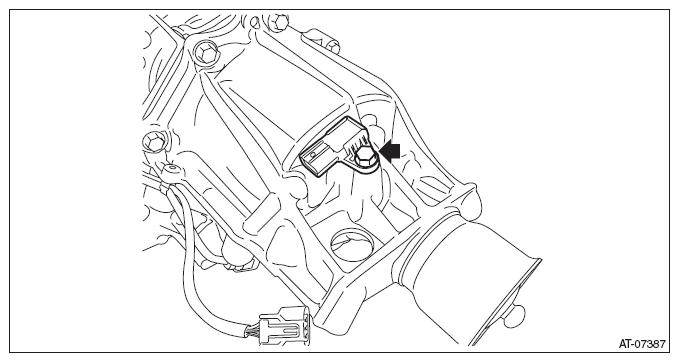

Fig 1: Removing Rear Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the rear wheel speed sensor connector.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Tighten the bolts which connect the center exhaust pipe (rear) and rear exhaust pipe.
NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Lower the vehicle.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
