Primary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the collector cover. <Ref. to REMOVAL , Collector Cover.>
  3. Remove the intercooler. <Ref. to REMOVAL , Intercooler.>
  4. Clean the transmission exterior.
  5. Remove the primary speed sensor harness connector.
    Fig 1: Removing Primary Speed Sensor Harness Connector
    G09481936Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the primary speed sensor and the spacer.

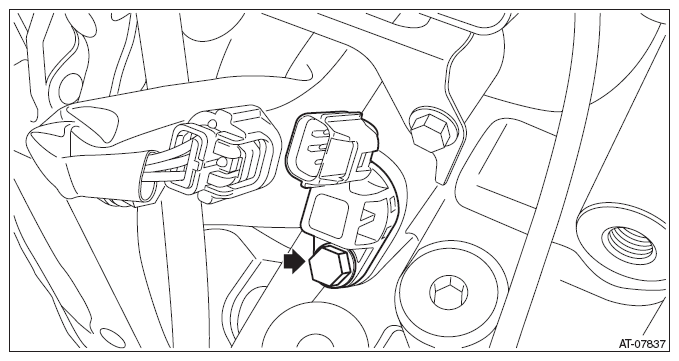

    Fig 2: Removing Primary Speed Sensor And Spacer
    G09482007Courtesy of SUBARU OF AMERICA, INC.
