Intermediate Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the reverse brake. <Ref. to ASSEMBLY , Reverse Brake Assembly.>
install all plugs to intermediate case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

NOTE: Use new O-rings.

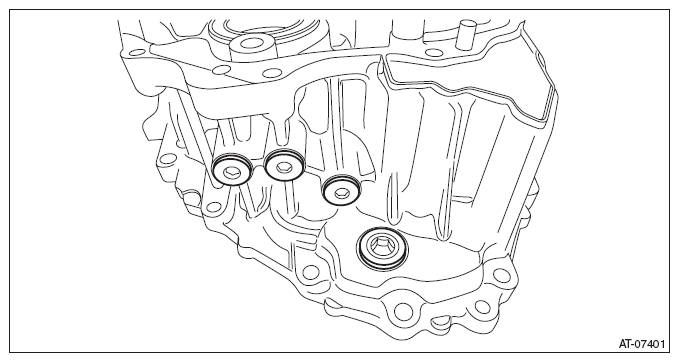

Fig 1: Removing Plugs From Intermediate Case
Courtesy of SUBARU OF AMERICA, INC.
Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Temporarily install the CVTF filler plug.
NOTE: Replace the gasket of CVTF filler plug with a new part after installing the transmission assembly to vehicle and adjusting CVTF fluid.
