Inhibitor Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.

Shift the select lever to "N" range.
Loosen the two bolts holding the inhibitor switch.
Insert the ST vertically into the holes of the shifter arm and switch body.
ST 499267300 STOPPER PIN

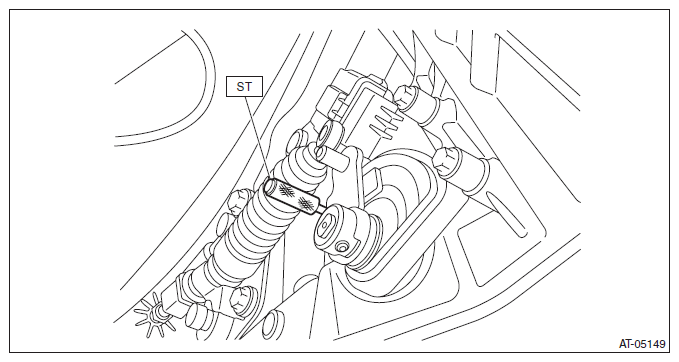

Fig 1: Inserting ST Into Holes Of Shifter Arm And Switch Body
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be "faulty", replace it.
