Transmission Case

WARNING: This page is about a different variant/trim than selected.

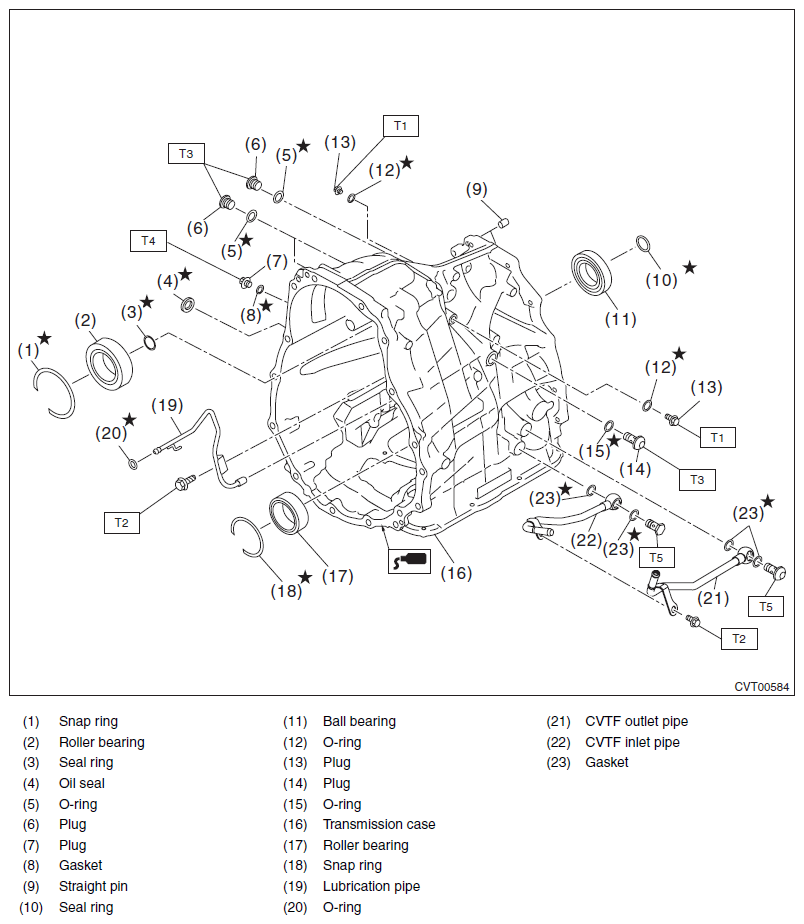

Fig 1: Exploded View Of Transmission Case Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)

T4: 35 (3.6, 25.8)

T5: 40 (4.1, 29.5)
