Oil Pump ASSY

WARNING: This page is about a different variant/trim than selected.

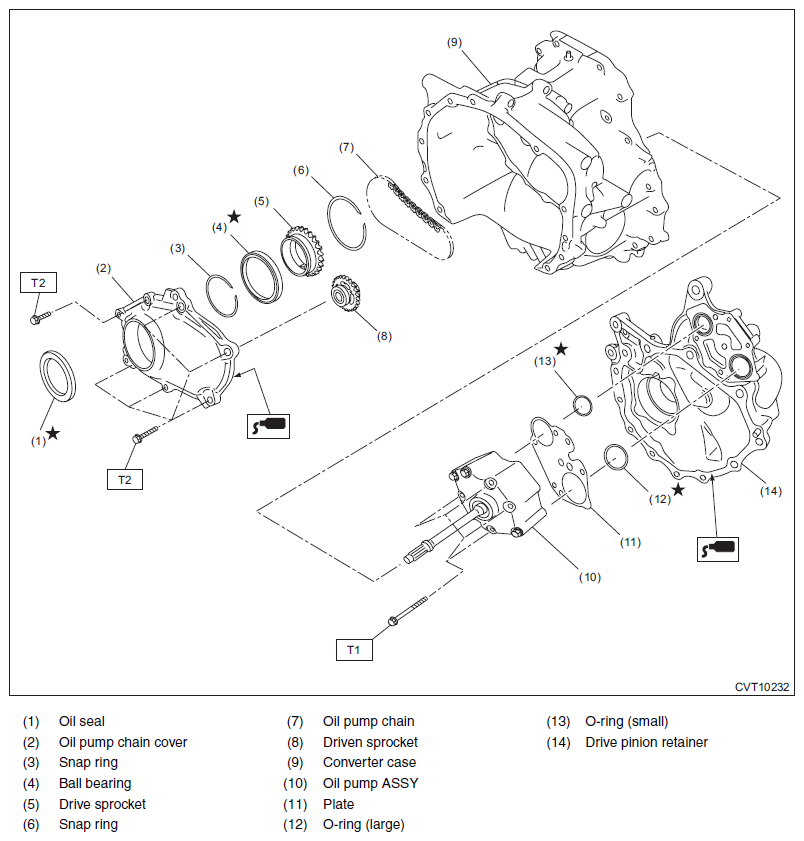

Fig 1: Exploded View Of Oil Pump Assy Components With Torque Specification
G11577515Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 24 (2.4, 17.7)
