CVTF Cooler (With Warmer Feature)

WARNING: This page is about a different variant/trim than selected.

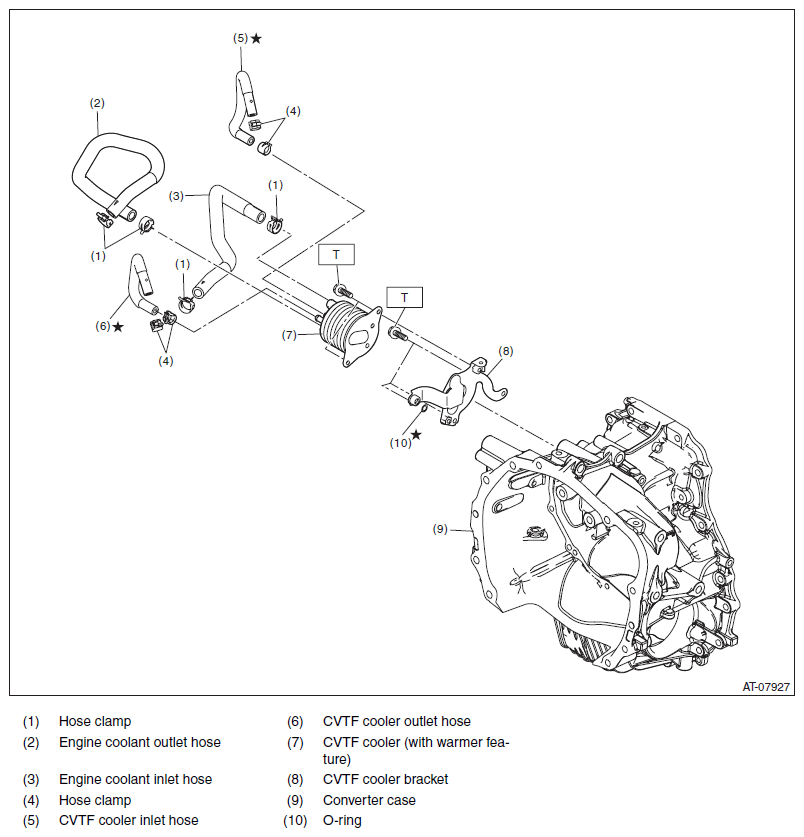

Fig 1: Exploded View Of CVTF Cooler (With Warmer Feature) Components With Torque Specification
G11577527Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
