Front Reduction Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the front reduction driven shaft from the front reduction driven gear.
Remove the snap ring.

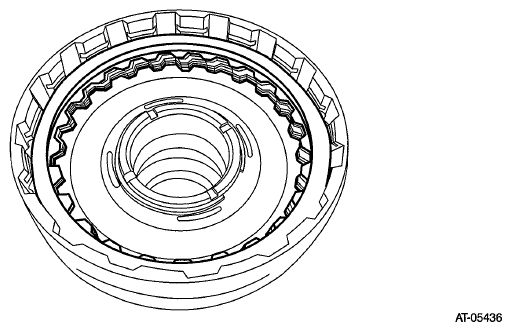

Fig 1: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the retaining plate, drive plate, driven plate and dish plate.

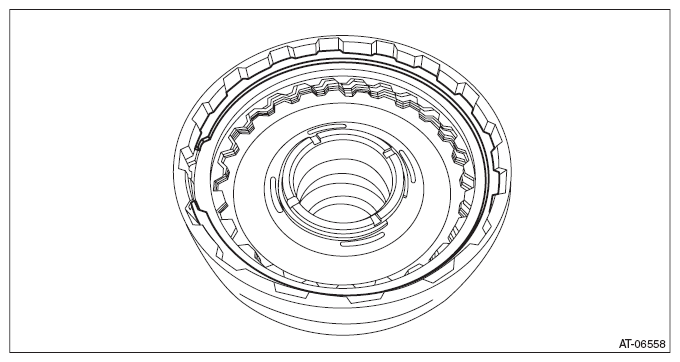

Fig 2: Removing Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring from front reduction driven shaft.

Fig 3: Removing Seal Ring From Front Reduction Driven Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing, while tapping the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole using the round bar with diameter of 7 mm (0.28 in).

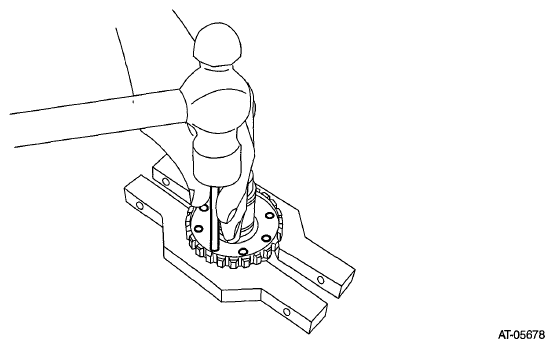

Fig 4: Removing Ball Bearing

Courtesy of SUBARU OF AMERICA, INC.
