Front Reduction Driven Gear: Adjustment

WARNING: This page is about a different variant/trim than selected.

If the ball bearing is attached, remove the bearing and shims. <Ref. to REMOVAL , Converter Case Cover.>
Using the ST, measure height "A" from the ST upper face to the mating surface of the case.
ST 398643600 GAUGE

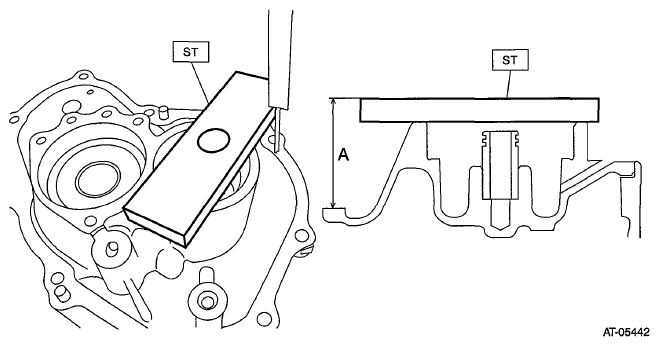

Fig 1: Measuring Height From ST Upper Face To Mating Surface Of Case
Courtesy of SUBARU OF AMERICA, INC.
Measure depth "B" from the converter case cover upper face to the bearing catch surface.

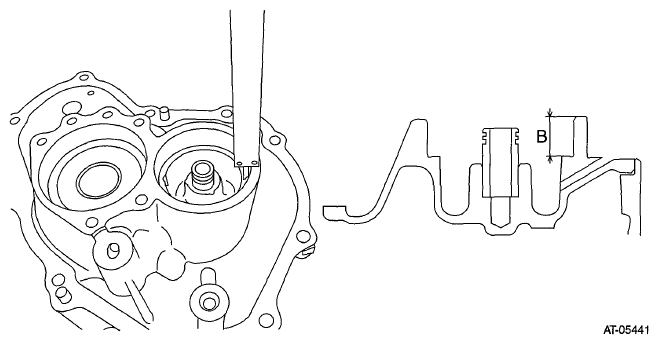

Fig 2: Measuring Depth From Converter Case Cover Upper Face To Bearing Catch Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the ball bearing to the reduction driven gear.
NOTE: Use a new ball bearing.
Measure depth "C" from the ST upper face to the bearing end face using the ST.
ST 398643600 GAUGE

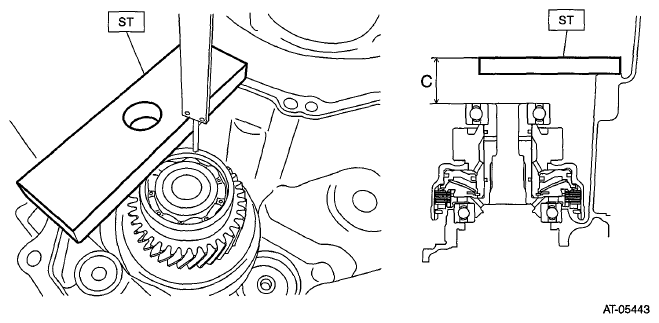

Fig 3: Measuring Depth From ST Upper Face To Bearing End Face Using ST
Courtesy of SUBARU OF AMERICA, INC.

Calculate clearance "T" using the following formula.

Formula: T mm = (C - 15) - ((A - 15) - B)

[T in = (C - 0.591) - ((A - 0.591) - B)]

T: Clearance

A: Height from the ST upper face to the converter case mating surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Depth from the ST upper face to the bearing end face

15 mm (0.591 in): Thickness of ST

Select one to two shims so that the total thickness meets the value obtained from above.
