Front Reduction Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

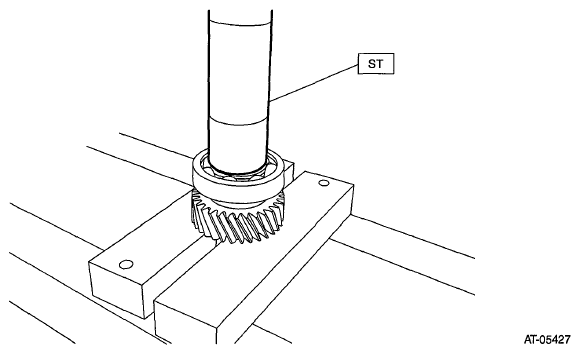

Using the ST, install the ball bearing to front reduction drive gear.
NOTE: Use a new ball bearing.

ST 18651AA000 INSTALLER

Fig 1: Installing Ball Bearing To Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.

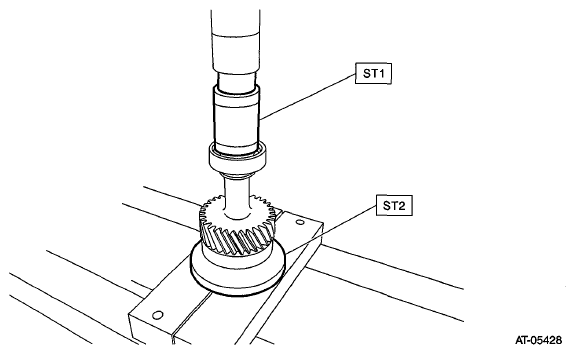

Using ST1 and ST2, install the ball bearing to front reduction drive gear.
NOTE: Use a new ball bearing.

ST1 499757002 INSTALLER

ST2 398177700 INSTALLER

Fig 2: Installing Ball Bearing To Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.

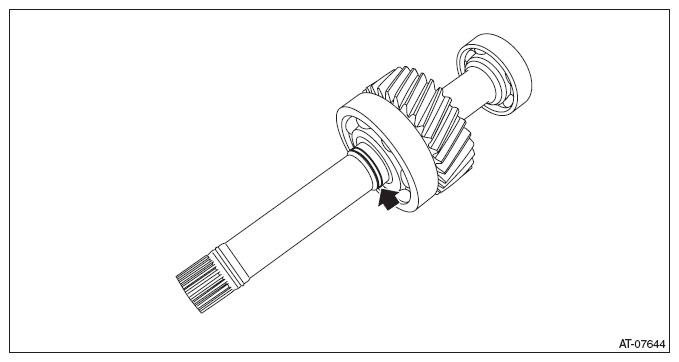

Install the seal rings.
NOTE:
- Use new seal rings.
- When installing the seal rings, do not expand the seal rings too much.
- Install the O-ring when installing the torque converter assembly.
Fig 3: Installing Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
