Forward Clutch Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the planetary carrier assembly.

Fig 1: Removing Planetary Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 2: Removing Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.

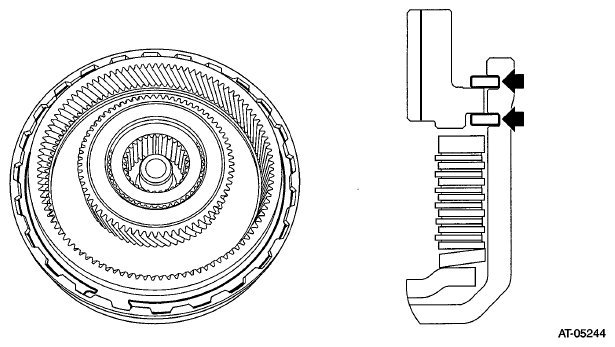

Remove the snap ring.
NOTE: Use marking or labeling to the upper snap ring for measurement of the snap ring thickness when selecting the retaining plate.

Fig 3: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the internal gear.

Fig 4: Removing Internal Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the sun gear.

Fig 5: Removing Sun Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the washer.

Fig 6: Removing Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 7: Removing Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Fig 8: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

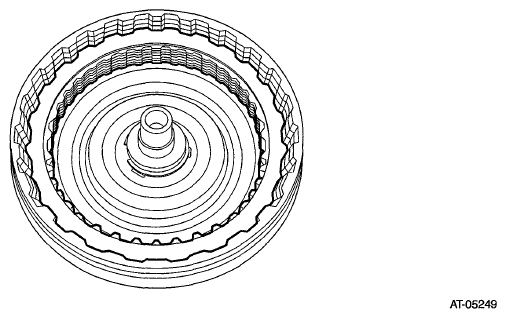

Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 9: Removing Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

Fig 10: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

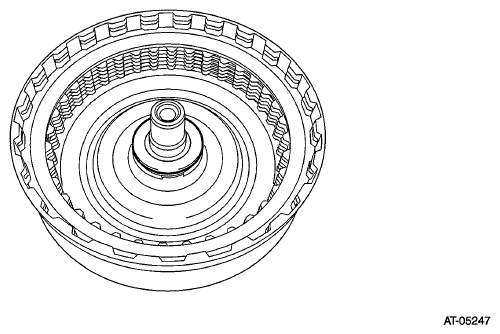

Remove the forward clutch piston retainer.

Fig 11: Removing Forward Clutch Piston Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 12: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.

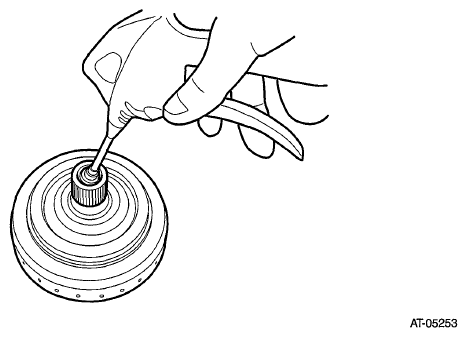

Remove the forward clutch piston by blowing compressed air intermittently from end of forward clutch drum.

Fig 13: Removing Forward Clutch Piston
Courtesy of SUBARU OF AMERICA, INC.
