Converter Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the oil drain plug.
NOTE: Use a new gasket.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Temporarily install the overflow drain plug.
NOTE: Replace the gasket of overflow drain plug with a new part after installing the transmission assembly to vehicle and adjusting differential gear oil.
Install all plugs.
NOTE: Use new O-rings.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

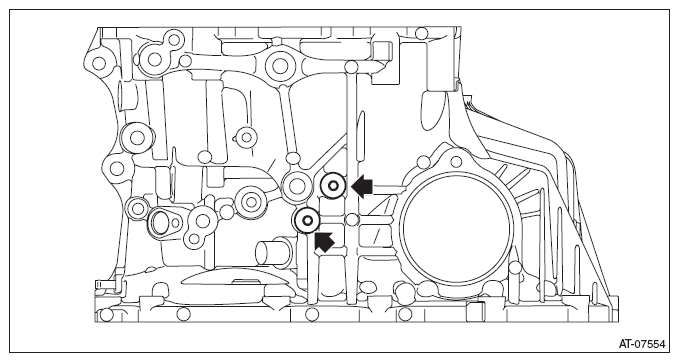

Fig 1: Locating Plugs
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper bracket and transmission radio ground cord.
CAUTION: Be careful not to deform or damage the terminal of transmission radio ground cord.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
Install the CVTF cooler pipe COMPL.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

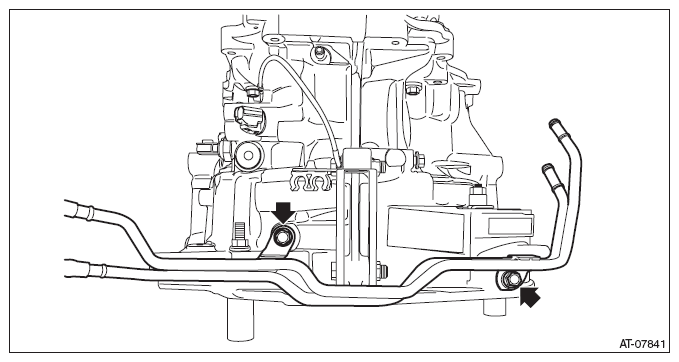

Fig 2: Locating Pitching Stopper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
