Converter Case Cover: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the plugs.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Removing Plug And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Using ST, install the center support COMPL.
ST 18270KA010 SOCKET (E16)

Tightening torque:

21.5 N.m (2.2 kgf-m, 15.9 ft-lb)

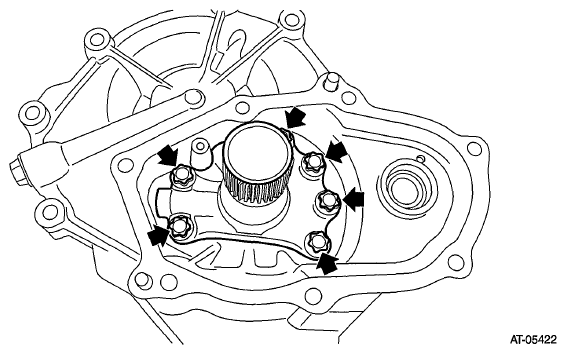

Fig 2: Removing Center Support COMPL
Courtesy of SUBARU OF AMERICA, INC.
