CVTF Cooler (With Warmer Function): Installation

WARNING: This page is about a different variant/trim than selected.

Connect the engine coolant inlet hose.
NOTE: When installing the engine coolant inlet hose, the triangle marking should face upward.

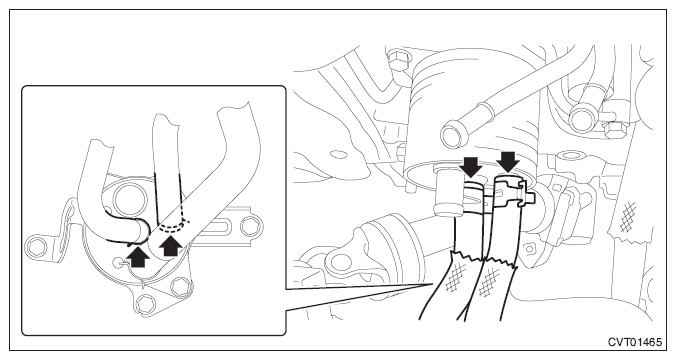

Fig 1: Removing Engine Coolant Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the insulator, EGR valve, and the intake manifold. <Ref. to INSTALLATION , Intake Manifold.> <Ref. to INSTALLATION , EGR Control Valve.>
Replace the CVTF inlet hose and the outlet hose.
Install the CVTF cooler (with warmer feature).
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

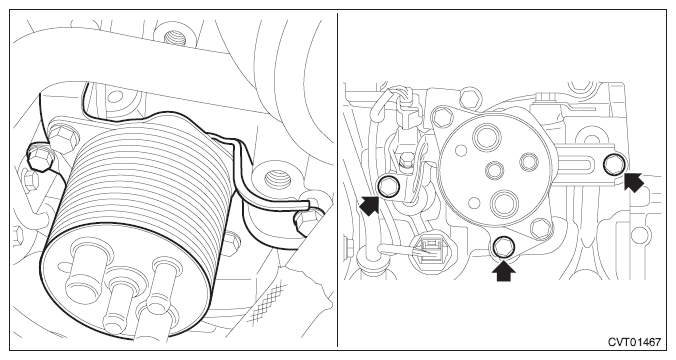

Fig 2: Removing CVTF Cooler (With Warmer Feature)
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant outlet hose.

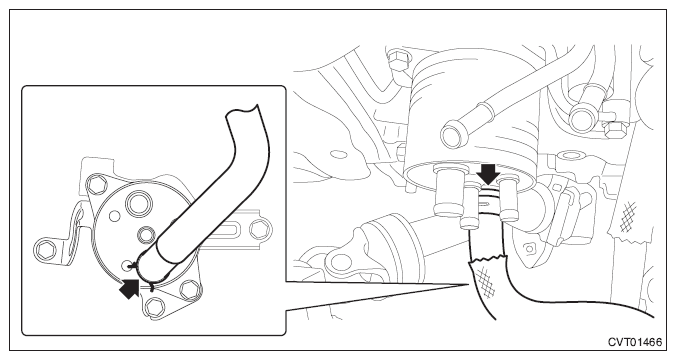

Fig 3: Removing Engine Coolant Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the CVTF inlet hose and CVTF outlet hose.
NOTE: Use new CVTF hoses.

Fig 4: Removing CVTF Inlet Hose And CVTF Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant outlet hose, engine coolant inlet hose, CVTF inlet hose and CVTF outlet hose.

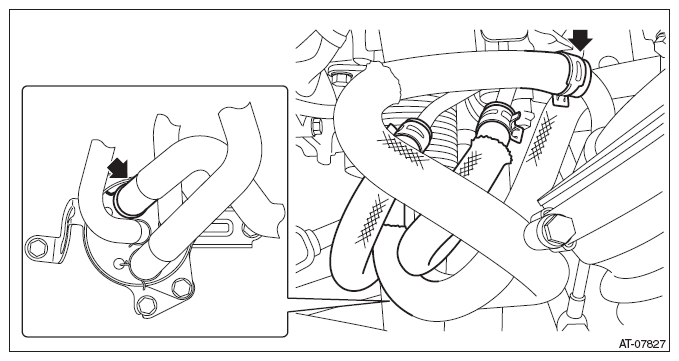

Fig 5: Installing Engine Coolant Outlet Hose, Engine Coolant Inlet Hose, CVTF Inlet Hose And CVTF Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Check installation condition of hoses.
- Make sure the hoses do not interfere with each other or with other components.
- Check each hose for bent, excess curve, and twisting conditions.
Install the harness clip.

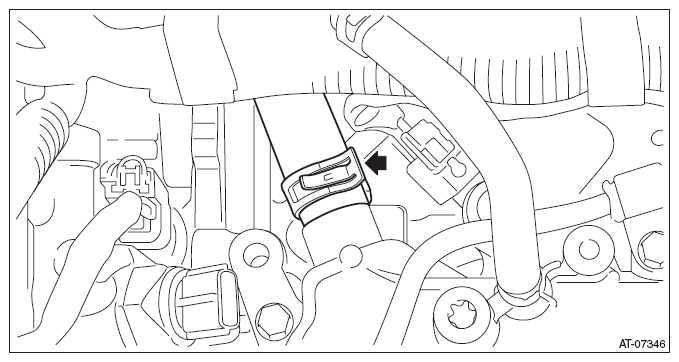

Fig 6: Removing Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
Install the collector cover. <Ref. to INSTALLATION , Collector Cover.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
Fill engine coolant. <Ref. to REPLACEMENT , Engine Coolant.>
Adjust the CVTF level. <Ref. to ADJUSTMENT , CVTF.>
