CVTF Cooler (With Warmer Function): Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Attach the bracket.

    Tightening torque:

    23 N.m (2.3 kgf-m, 17.0 ft-lb)

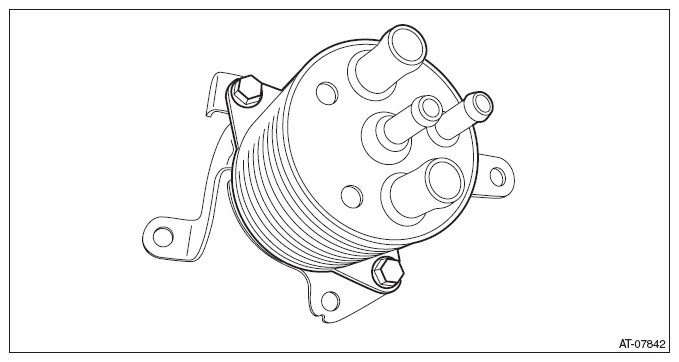

    Fig 1: Removing Bracket
    G09482053Courtesy of SUBARU OF AMERICA, INC.
