DTC B225A: Center Information Display
DTC detecting condition:
Detected when the center information display has an internal failure.
Trouble symptom:
Display and operation of the center information display are faulty.

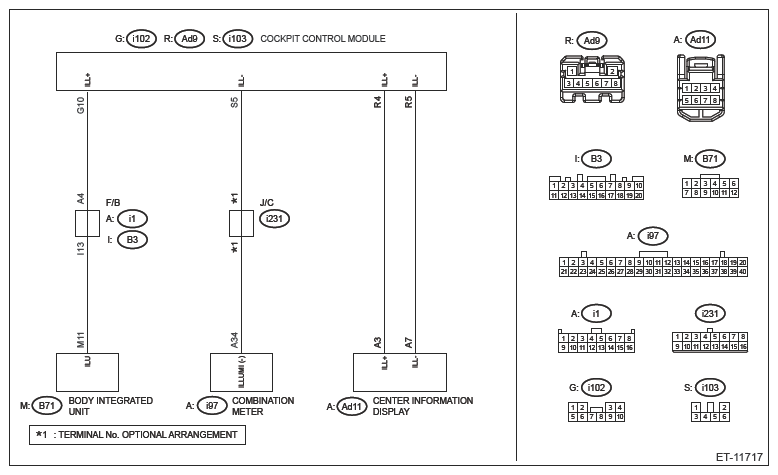

Wiring diagram:
Audio and navigation system Ref. to WIRING SYSTEM>AUDIO AND NAVIGATION SYSTEM>WIRING DIAGRAM
Clearance light and illumination light system Ref. to WIRING SYSTEM>CLEARANCE LIGHT AND ILLUMINATION LIGHT SYSTEM>WIRING DIAGRAM
Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to COCKPIT CONTROL (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION
- CHECK DTC
.
- Turn the ignition switch to ON.
- Using the Subaru Select Monitor, perform the clear memory of [Cockpit Control]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY
- Turn the ignition switch OFF → ON.
- Read the DTC of [Cockpit Control] using the Subaru Select Monitor. Ref. to COCKPIT CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
Is DTC B225A displayed? (Current code)
Yes : Go to 2.
No : Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
NOTE:In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
- CHECK CONNECTOR
.
- Turn the ignition switch to OFF.
- Check each connector connected to the center information display.
Is the check result OK?
Yes : Go to 3.
No : Repair the harness or replace the components.
- CHECK THE HARNESS BETWEEN THE COCKPIT CONTROL MODULE AND THE CENTER INFORMATION DISPLAY (OPEN)
.
- Disconnect the cockpit control module connector (Ad9).
- Disconnect the center information display connector (Ad11).
- Using a tester, measure the resistance of the harness between the cockpit control module connector (Ad9) and the center information display connector (Ad11).
Connector & terminal
(Ad9) No. 4 - (Ad11) No. 3:
(Ad9) No. 5 - (Ad11) No. 7:
Is the resistance less than 1 Ω?
Yes : Go to 4.
No : Repair the open circuit in harness between the cockpit control module connector and the center information display connector.
- CHECK HARNESS BETWEEN COCKPIT CONTROL MODULE AND BODY INTEGRATED UNIT (OPEN)
.
- Disconnect the cockpit control module connector (i102).
- Disconnect the body integrated unit connector (B71).
- Using the tester, measure the resistance of harness between cockpit control module connector (i102) and body integrated unit connector (B71).
Connector & terminal
(i102) No. 10 - (B71) No. 11:
Is the resistance less than 1 Ω?
Yes : Go to 5.
No : Repair the open circuit in harness between cockpit control module connector and body integrated unit connector.
- CHECK HARNESS BETWEEN THE COCKPIT CONTROL MODULE AND THE COMBINATION METER (OPEN)
.
- Disconnect the cockpit control module connector (i103).
- Disconnect the combination meter connector (i97).
- Using the tester, measure the resistance of harness between the cockpit control module connector (i103) and the combination meter connector (i97).
Connector & terminal
(i103) No. 5 - (i97) No. 34:
Is the resistance less than 1 Ω?
Yes : Replace the center information display. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY
No : Repair the open circuit in the harness between the cockpit control module connector and the combination meter connector.
