Check For Short To Power Supply (Power Unit Can)

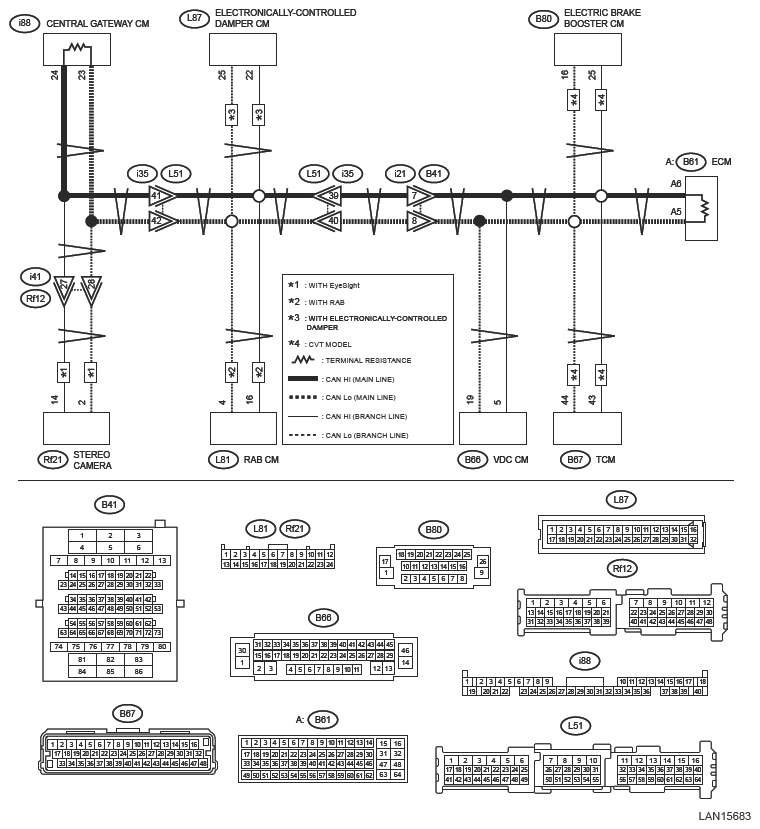

Wiring diagram:
CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM
Main wiring harness or related lines may be shorted to battery circuit, or shorted to battery circuit in one of the control modules.
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS
.
- Turn the ignition switch to OFF.
- Disconnect the central gateway control module connector.
- Turn the ignition switch to ON.
- Using a tester, measure the voltage between the central gateway control module connector and chassis ground.
Connector & terminal
(i88) No. 23 (+) - Chassis ground (-):
(i88) No. 24 (+) - Chassis ground (-):
Is the voltage 5 V or less?
Yes : Go to 3.
No : Go to 2.
- CHECK CONTROL MODULE
.
With a tester connected, disconnect control modules in order.
Connector & terminal
(i88) No. 23 (+) - Chassis ground (-):
(i88) No. 24 (+) - Chassis ground (-):
Did the voltage change to 5 V or less?
Yes : Replace the control module whose voltage has changed.
No : Repair or replace the short circuit of the harness between the central gateway control module and ECM.
- CHECK CENTRAL gateway control module
.
- Connect the central gateway control module connector.
- Disconnect the VDC Control Module connector.
- Using a tester, measure the voltage between the VDC Control Module connector and chassis ground.
Connector & terminal
(B66) No. 5 (+) - Chassis ground (-):
(B66) No. 19 (+) - Chassis ground (-):
Is the voltage 5 V or less?
Yes : Currently, it is normal.
No : Replace the central gateway control module. Ref. to BODY CONTROL/COMMUNICATION SYSTEM>CENTRAL gateway control module
