Instrument Panel Assembly: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

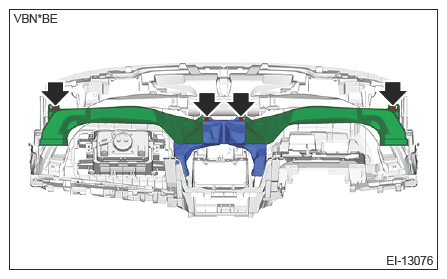

  1. Remove the screws, and remove the duct side ventilation and the duct center ventilation front.
    G14613043Courtesy of SUBARU OF AMERICA, INC.

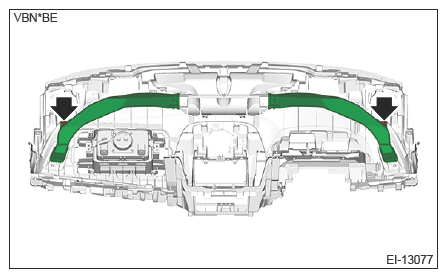

  2. Remove the screws and detach the duct side defroster.
    G14613044Courtesy of SUBARU OF AMERICA, INC.

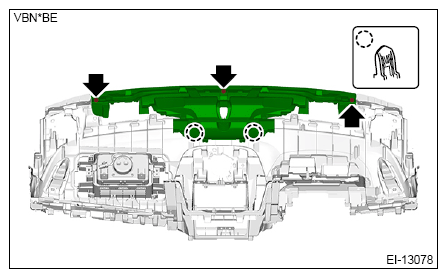

  3. Remove the nozzle front defroster assembly.
    1. Remove the cushion instrument.
    2. Remove the screws and release the claws, then detach the nozzle front defroster assembly.
      G14613045Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the tapping screws and release the claws, and remove the passenger's airbag module.
    G14612233Courtesy of SUBARU OF AMERICA, INC.

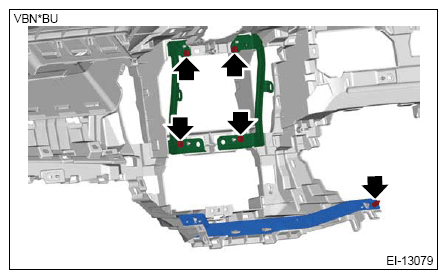

  5. Remove the bracket CTR UPR and the reinforcement CTR LWR.
    1. Remove the screws, and then remove the bracket CTR UPR.
    2. Remove the screws, and then remove the reinforcement CTR LWR.
      G14613047Courtesy of SUBARU OF AMERICA, INC.

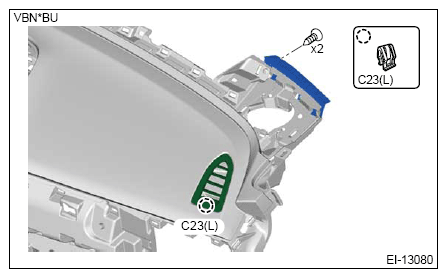

  6. Remove the grille defroster side and the nozzle front defroster side.
    1. Release the clips, and then remove the grille defroster side.
    2. Remove the screws, and remove the nozzle front defroster side.
      G14613048Courtesy of SUBARU OF AMERICA, INC.
