Console Front

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front antenna assembly interior. Ref. to SECURITY AND LOCKS>KEYLESS ACCESS INDOOR ANTENNA>REMOVAL>FRONT ANTENNA

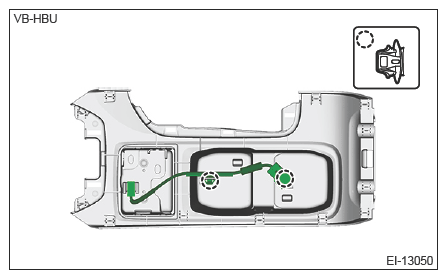

  2. Release the cord clips, and remove the cord assembly front antenna.
    G14613015Courtesy of SUBARU OF AMERICA, INC.

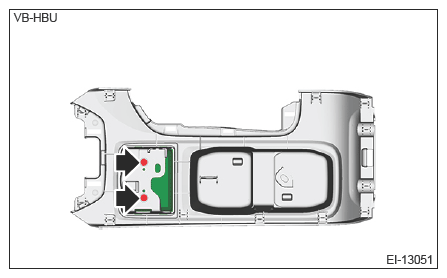

  3. Remove the screws and remove the tray cover front.
    G14613016Courtesy of SUBARU OF AMERICA, INC.
