Console Rear

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the socket assembly. Ref. to ENTERTAINMENT & MONITORING>ACCESSORY POWER SUPPLY SOCKET>REMOVAL>REAR
  2. Remove the cord clips of the cord assembly power and the cord assembly rear seat heater.
    NOTE:

    Routing of the cord varies depending on the specifications.

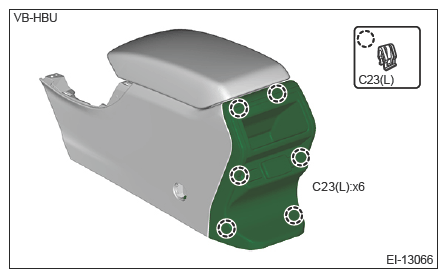

  3. Release the clips and remove the cover rear console assembly.
    G14613029Courtesy of SUBARU OF AMERICA, INC.

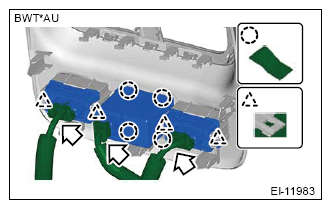

  4. Remove the AUX unit assembly power and the switch assembly rear seat heater.
    1. Disconnect connectors.
    2. Release the claws and remove the AUX unit assembly power and the switch assembly rear seat heater.
      G13625988Courtesy of SUBARU OF AMERICA, INC.

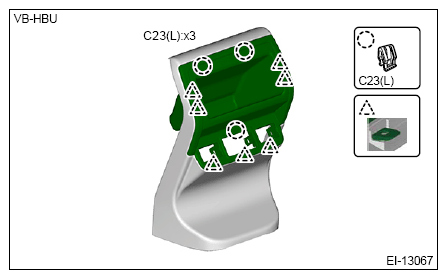

  5. Release the clips and claws, and remove the panel switch console.
    G14613031Courtesy of SUBARU OF AMERICA, INC.

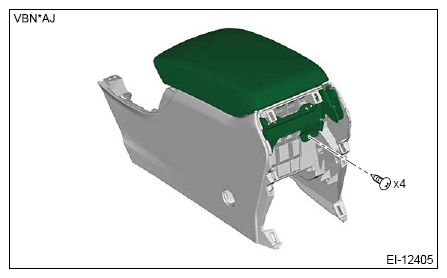

  6. Remove the screws and remove the lid assembly console.
    G14613032Courtesy of SUBARU OF AMERICA, INC.

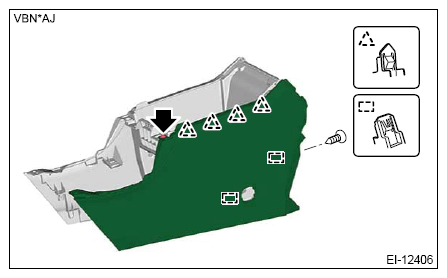

  7. Remove the screws and release the claws, then remove the console box LWR.
    NOTE:

    Release the claws and clips on the RH side in the same procedure as on the LH side.

    G14613033Courtesy of SUBARU OF AMERICA, INC.
