Console Front

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

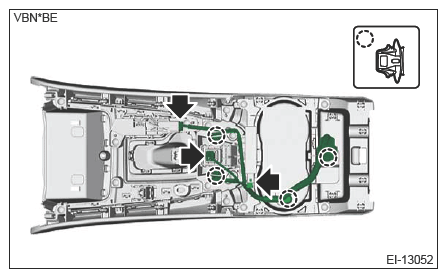

  1. Remove the cord assembly console.
    1. Disconnect connectors.
    2. Release the cord clips and remove the cord assembly console.
      G14613022Courtesy of SUBARU OF AMERICA, INC.

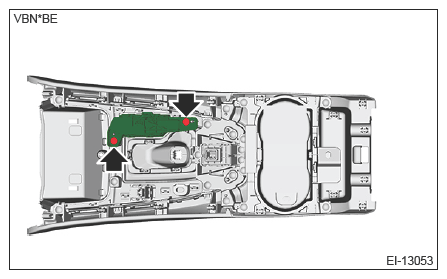

  2. Remove the screws and remove the indicator.
    G14613023Courtesy of SUBARU OF AMERICA, INC.

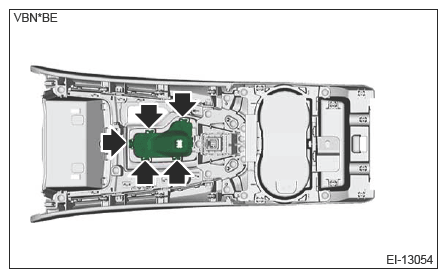

  3. Release the claws, and remove the boot.
    G14613024Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the switch assembly EPB. Ref. to PARKING BRAKE>PARKING BRAKE SWITCH>REMOVAL>ELECTRONIC PARKING BRAKE MODEL
  5. Remove the front antenna assembly interior. Ref. to SECURITY AND LOCKS>KEYLESS ACCESS INDOOR ANTENNA>REMOVAL>FRONT ANTENNA

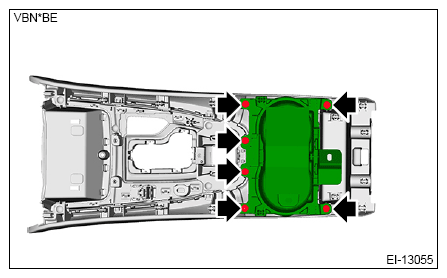

  6. Remove the screw and remove the cup holder.
    G14613025Courtesy of SUBARU OF AMERICA, INC.

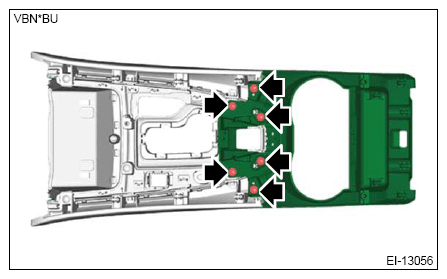

  7. Remove the screws and remove the cover front panel Rr.
    G14613026Courtesy of SUBARU OF AMERICA, INC.

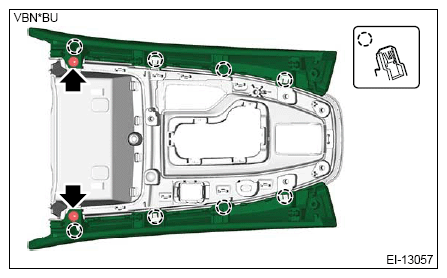

  8. Remove the screws and release the claws, and then remove the ornament cover front.
    G14613027Courtesy of SUBARU OF AMERICA, INC.

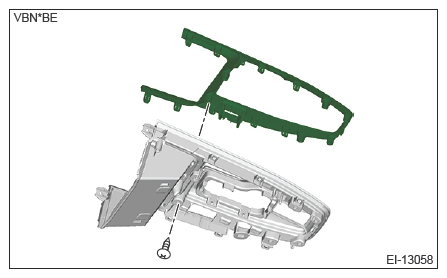

  9. Remove the screws and release the claws, and then remove the cover front panel UPR.
    G14613028Courtesy of SUBARU OF AMERICA, INC.
