Console Rear

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console box LWR.
  2. Install the lid assembly console.
  3. Install the panel switch console to the cover rear console assembly.
  4. Install the AUX unit assembly power and the switch assembly rear seat heater, and connect each connector.
    NOTE:

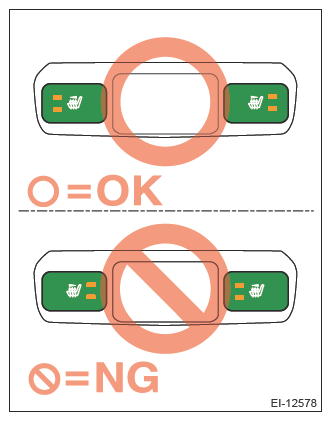

    Install the parts with the switch assembly rear seat heater indicator facing outside.

    G14613034Courtesy of SUBARU OF AMERICA, INC.
  5. Install the cover rear console assembly.
  6. Install the cord assembly power and the cord assembly rear seat heater.
  7. Install the socket assembly. Ref. to ENTERTAINMENT & MONITORING>ACCESSORY POWER SUPPLY SOCKET>INSTALLATION>REAR
