Section 30 (Engine Intake System (Induction)): Turbocharger: Disassembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

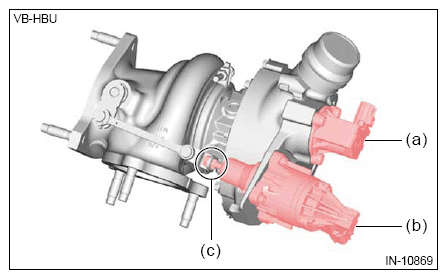

CAUTION:
  • The electronic air by-pass valve (a) and the electronic wastegate valve (b) are non-disassembled parts, so do not remove them.
  • Do not adjust the actuator rod nut (c).
G14610493Courtesy of SUBARU OF AMERICA, INC.

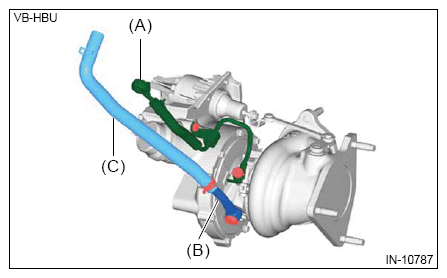

  1. Remove the oil pipe (A), water pipe (B) and water hose (C).
    G14610494Courtesy of SUBARU OF AMERICA, INC.

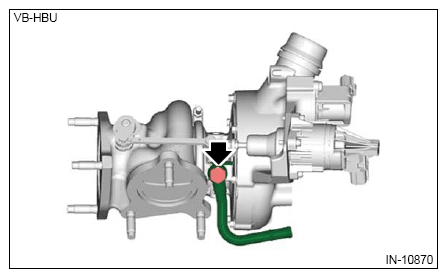

  2. Remove the water pipe.
    G14610495Courtesy of SUBARU OF AMERICA, INC.

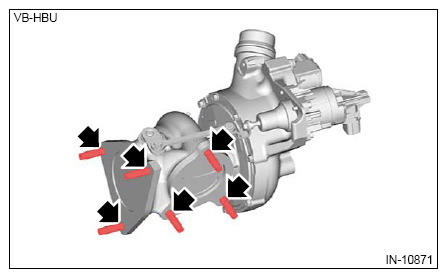

  3. Remove the stud bolt using TORX® E10.
    G14610496Courtesy of SUBARU OF AMERICA, INC.
