Oil Catch Tank: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
  3. Unlock the blow-by diagnosis connector, and disconnect the PCV hose assembly No. 2 from the PCV hose assembly No. 1.
    G13620019Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
  5. Remove the clip securing the engine oil hose to the hose stay, and remove the oil hose.
    NOTE:

    Prepare a container for draining of oil, and drain the engine oil in the oil catch tank.

    G14610501Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the oil catch tank.

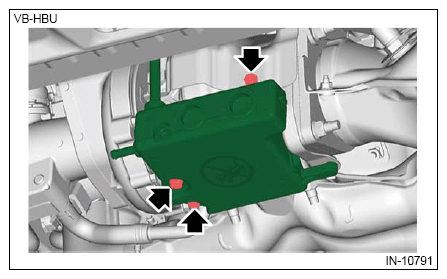

    G14610502Courtesy of SUBARU OF AMERICA, INC.
