Air Intake Boot: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

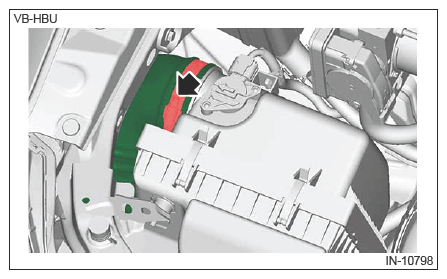

Disconnect the turbo duct from the air cleaner case (rear).

Courtesy of SUBARU OF AMERICA, INC.
Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
Disconnect the air intake boot from the intake duct No. 1.

Courtesy of SUBARU OF AMERICA, INC.

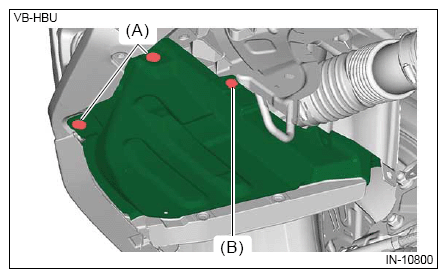

Remove the clips (A) and screw (B), and turn over the mud guard front RH.

Courtesy of SUBARU OF AMERICA, INC.

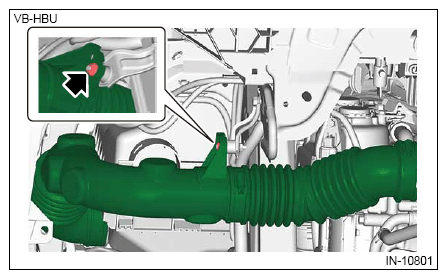

Remove the nut, and remove the turbo duct and the air intake boot as a single unit.

Courtesy of SUBARU OF AMERICA, INC.

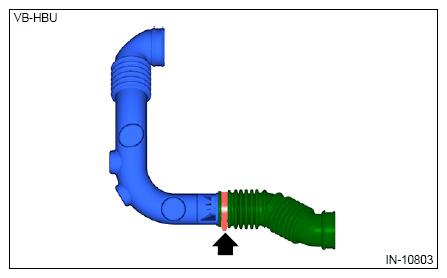

Disconnect the turbo duct and the air intake boot.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

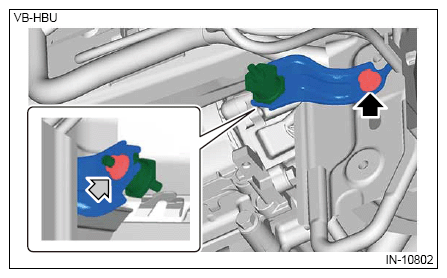

Remove the cushion from the turbo duct bracket, and remove the turbo duct bracket.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
