Air Cleaner Element: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) securing the harness.

Courtesy of SUBARU OF AMERICA, INC.
Release the clip (A) lock.

Courtesy of SUBARU OF AMERICA, INC.

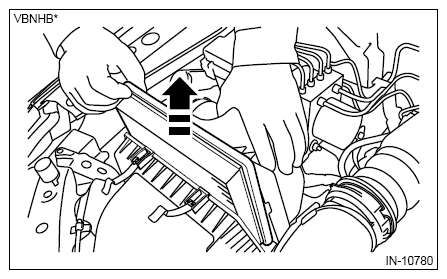

Lift the air cleaner case (rear) as shown in the figure and remove the air cleaner element.

NOTE:

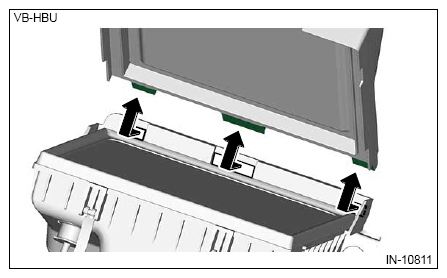

Disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
