Rocker Cover RH

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

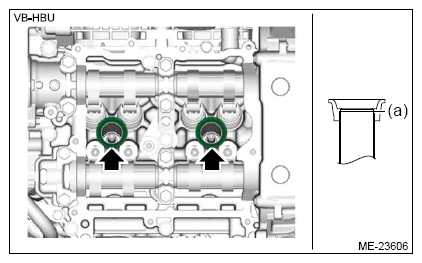

Install new spark plug pipe gaskets to the spark plug pipe.
NOTE:
Apply a light coat of engine oil to the spark plug pipe gaskets, and insert them onto the spark plug pipe edge (a).

Courtesy of SUBARU OF AMERICA, INC.

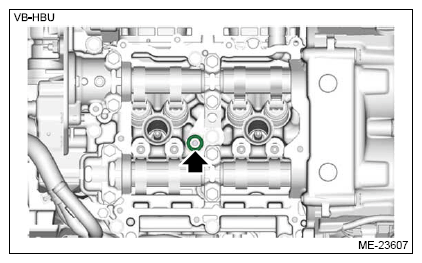

Install new rocker cover gasket (ring type) to the cam carrier RH.

Courtesy of SUBARU OF AMERICA, INC.
Install new rocker cover gasket RH to the rocker cover RH.

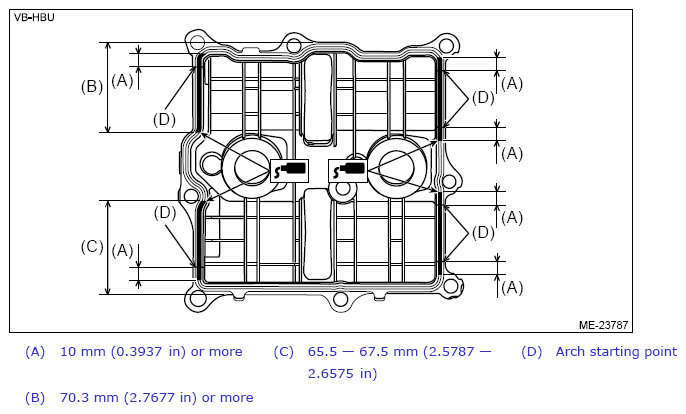

Apply liquid gasket to the mating surface of rocker cover RH as shown in the figure.

NOTE:

Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine.

Apply liquid gasket to the center of rocker cover gasket and be careful not to allow liquid gasket to be squeezed out from rocker cover gasket.

Courtesy of SUBARU OF AMERICA, INC.

Install within 5 min. after applying liquid gasket.

Preparation items:

Liquid gasket: THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

3±1 mm (0.1181±0.0394 in)

Courtesy of SUBARU OF AMERICA, INC.

Install the rocker cover RH to the cam carrier RH.
1. Set the rocker cover RH on the cam carrier RH, and fasten all bolts until their two or more full threads engage.
2. Tighten all bolts with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) in numerical order as shown in the figure.
3. Tighten all bolts again with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) in numerical order as shown in the figure.
  NOTE:
  This procedure is necessary to stabilize torque.

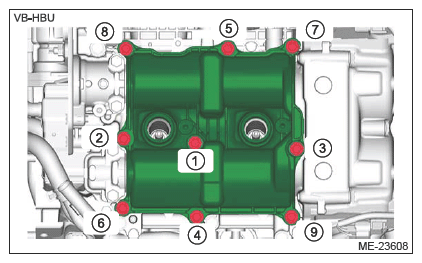

  Fig 1: Rocker Cover RH Bolts Tightening Sequence
  Courtesy of SUBARU OF AMERICA, INC.

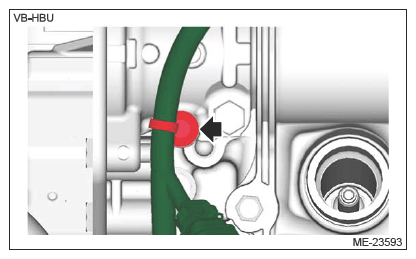

Place the engine wiring harness and secure the engine wiring harness to the cam carrier RH with the clip.

Courtesy of SUBARU OF AMERICA, INC.
Install the clip to the oil pipe (vacuum pump). (MT model)

Courtesy of SUBARU OF AMERICA, INC.
Install the #1 ignition coil and the #3 ignition coil. Ref. to IGNITION (H4DOTC)>IGNITION COIL>INSTALLATION>RH SIDE

When working on the vehicle

NOTE:

When working on the vehicle, perform the following steps also.

Install the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR CLEANER CASE>INSTALLATION

Install the V-belt cover.

NOTE:

Check the grommet for peel-off or disengagement.
Be careful not to deform the bracket during installation.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
