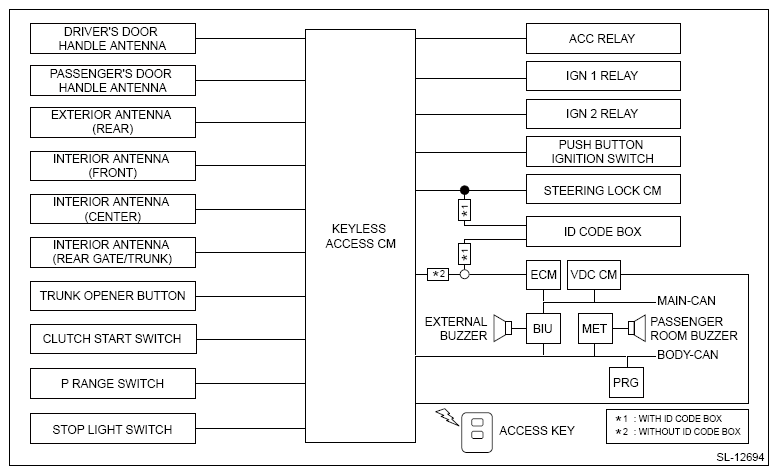

System Block Diagram

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
G14615259Courtesy of SUBARU OF AMERICA, INC.
