Section 12 (Sunroof): Sunshade: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel roof assembly. Ref. to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL
  3. Remove the shade assembly.
    CAUTION:

    Be careful not to damage the shade assembly.

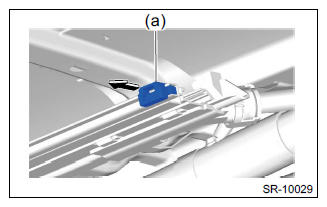

    1. Remove the left and right stopper rubbers (a).
      G11246415Courtesy of SUBARU OF AMERICA, INC.

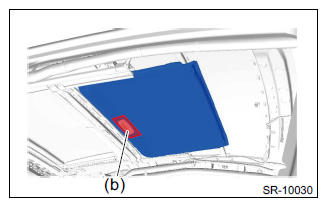

    2. Attach protective tape (b) on the handle of shade assembly.
    3. Remove the shade assembly while pulling the center of the brace downward.
      G11246416Courtesy of SUBARU OF AMERICA, INC.
