Sunroof Motor: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>REMOVAL

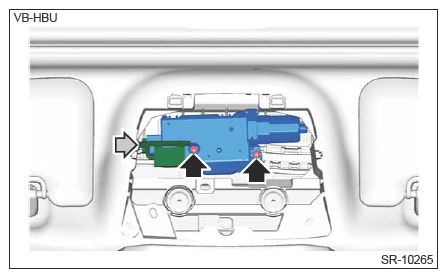

  3. Remove the motor assembly.
    1. Disconnect the connector.
    2. Remove the screws to remove motor assembly.
      CAUTION:

      When removing the sunroof motor, secure the cable assembly so that it does not move.

      G14612880Courtesy of SUBARU OF AMERICA, INC.
