High-Pressure Fuel Delivery Pipe Assembly

CAUTION:

• Be careful not to spill fuel.
• Catch the fuel from the pipes using a container or cloth.

1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
2. Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
3. Remove the fuel pipe insulator No. 1. <Ref. to FUEL PIPE INSULATOR NO. 1 , REMOVAL, Fuel Insulator.>
4. Remove the fuel pipe insulator No. 2. <Ref. to FUEL PIPE INSULATOR NO. 2 , REMOVAL, Fuel Insulator.>
5. Remove the fuel pipe insulator No. 3. <Ref. to FUEL PIPE INSULATOR NO. 3 , REMOVAL, Fuel Insulator.>
6. Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.

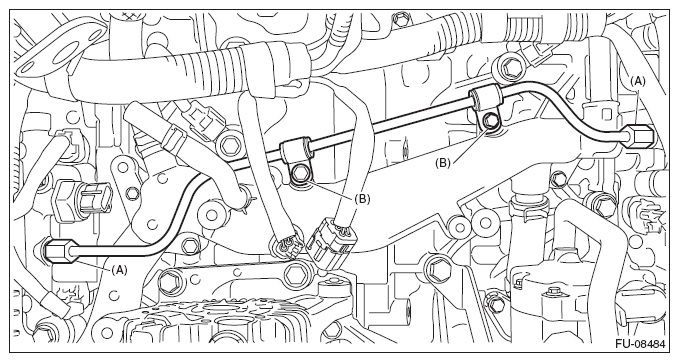

Fig 1: High-Pressure Fuel Delivery Pipe Assembly Flare Nuts And Bolts

Courtesy of SUBARU OF AMERICA, INC.
