Relay and Fuse: Location

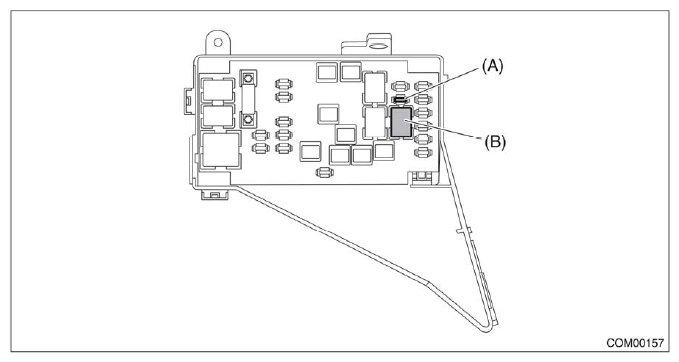

Fig 1: Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 15 A (horn assembly - Hi, Lo)	(A)
Main fuse box	Horn relay	(B)

NOTE: For other related fuses, refer to the wiring diagram. <Ref. to Power Supply Circuit .>
