Vehicle Dynamics Control (VDC) System (Diagnostics): Electrical Component Location: Location

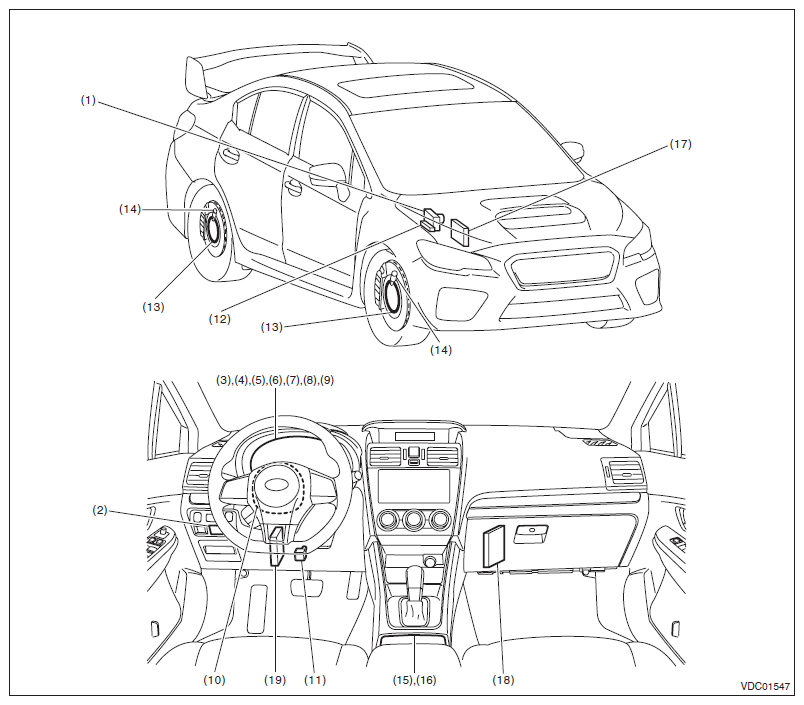

Fig 1: Vehicle Electrical Component Location (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

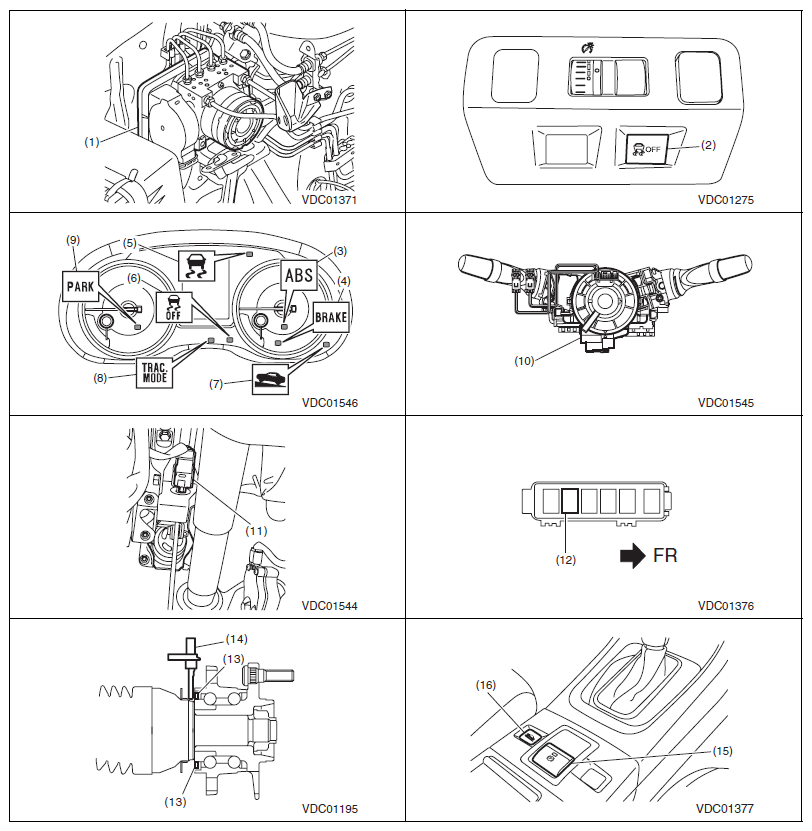

Fig 2: Vehicle Electrical Component Location (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

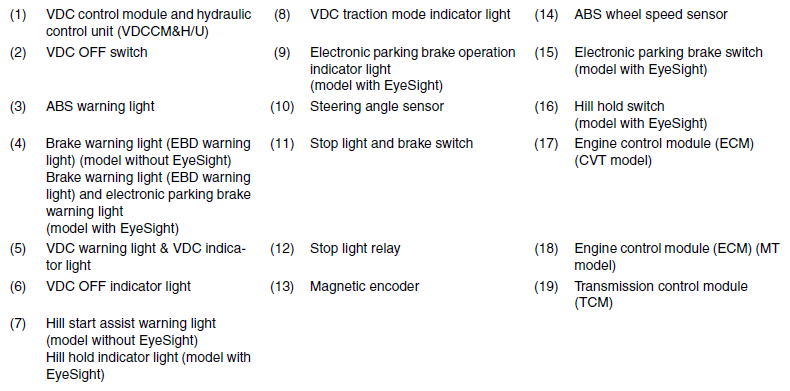

Fig 3: Vehicle Electrical Component Location (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
