Relay and Fuse: Location

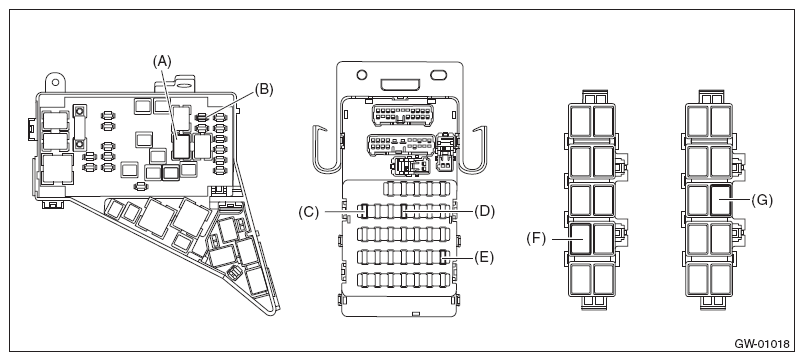

Fig 1: Relay And Fuse Box Location

G08315131

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Rear defogger relay	(A)
Main fuse box	Fuse 25 A (rear defogger)	(B)
Relay & fuse box	Fuse 7.5 A (remote control mirror)	(C)
	Fuse 15 A (wiper deicer)	(D)
	Fuse 7.5 A (power window)	(E)
Relay holder	Power window relay	(F)
Relay holder	Wiper deicer relay	(G)

NOTE: For other related fuses, refer to the wiring diagram. <Ref. to Power Supply Circuit .>
