Rear Regulator and Motor Assembly: Removal

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - rear door. <Ref. to REAR DOOR , REMOVAL, Door Trim.>
Remove the sealing cover - rear door.
Remove the glass assembly - rear door. <Ref. to REMOVAL , Rear Door Glass.>
Remove the rear regulator and motor assembly.
1. Disconnect the connector of the motor - rear.

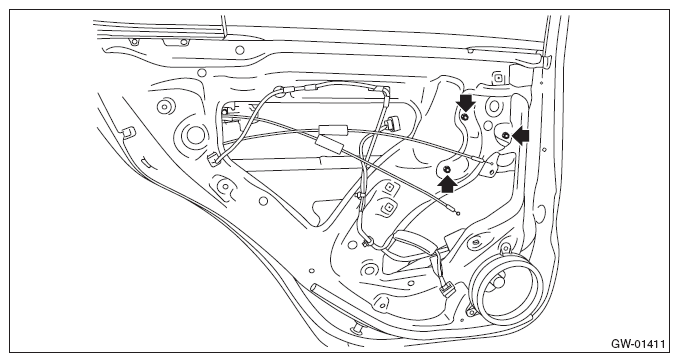

  Fig 1: Removing Rear Regulator And Motor Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolts, and then remove the regulator and motor assembly - rear.

  Fig 2: Locating Regulator And Motor Assembly Bolts (Rear)
  Courtesy of SUBARU OF AMERICA, INC.
