Front Door Glass: Removal

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - front door. <Ref. to FRONT DOOR , REMOVAL, Door Trim.>
Remove the sealing cover - front door. <Ref. to REMOVAL , Front Sealing Cover.>
Remove the front door inner pad (a).
CAUTION: If the clip is damaged, replace it with a new part because the panel assembly - front door may be deformed.

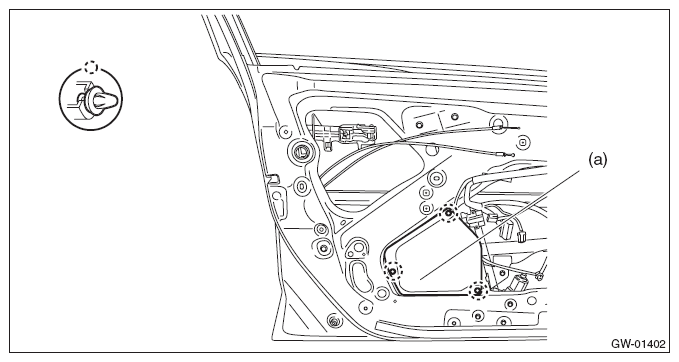

Fig 1: Front Door Inner Pad Location
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
Remove the glass assembly - front door.
1. Connect the switch - power window and then turn the ignition switch to ON.
2. Operate the switch - power window to move the glass assembly - front door to the position where the mounting bolts can be seen.
3. Remove the mounting bolts from the glass assembly - front door.

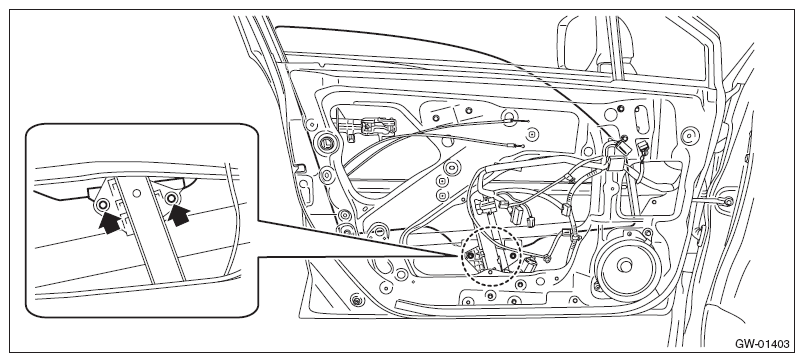

  Fig 2: Locating Front Door Glass Assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. While tilting the glass, remove the glass assembly - front door.
  CAUTION: Avoid impact and damage to the glass assembly - front door.

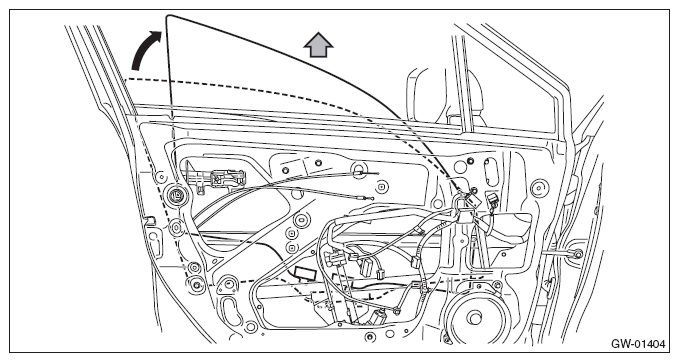

  Fig 3: Removing Front Door Glass Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the glass - front door partition.
1. Remove the bolts and screws, and then remove the running channel - front door and the sash COMPL - partition.

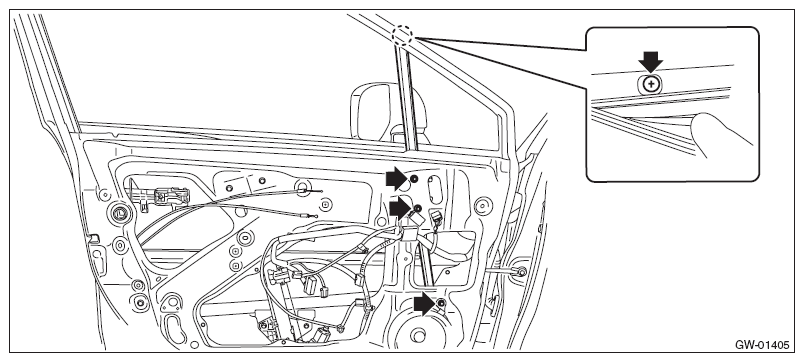

  Fig 4: Locating Front Door Partition Glass Bolts And Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the glass - front door partition.

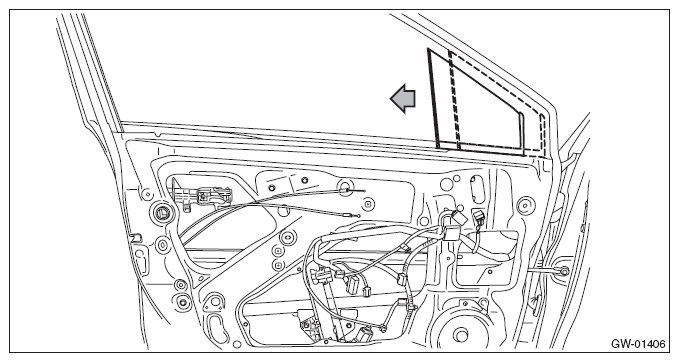

  Fig 5: Removing Front Door Partition Glass
  Courtesy of SUBARU OF AMERICA, INC.
