Sunroof Assembly: Installation

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>
For installation of the stereo camera cover assembly, refer to "INSTALLATION", "Stereo Camera" in the "EyeSight" information and observe the precautions for installation. <Ref. to INSTALLATION , Stereo Camera.>
Be careful not to snag the harness.

Install each connector and the drain tube - sunroof.
Tightening torque:

Connector holder: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Ground bolt: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
Install the cover side sill - front.
Install the sunroof bracket and the rail assembly - sunroof.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)
Connect the harness connector of the drain tube - sunroof and the motor assembly.
CAUTION: Insert the four drain tubes 15 mm (0.59 in) or more into the drain pipes (A).

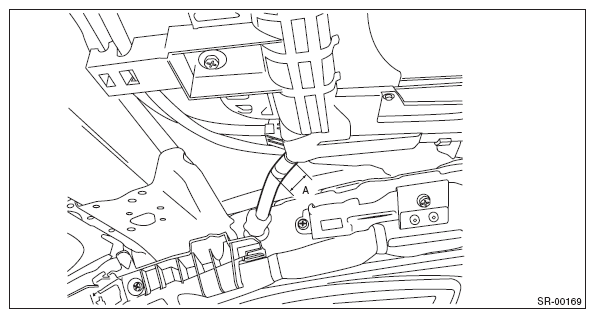

Fig 1: Drain Pipes
Courtesy of SUBARU OF AMERICA, INC.
Install the bracket - assist rail.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the trim panel - roof assembly. <Ref. to INSTALLATION , Roof Trim.>
Using a new TORX® bolt, install the lid assembly - sunroof.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)
