Sunroof Assembly: Disassembly

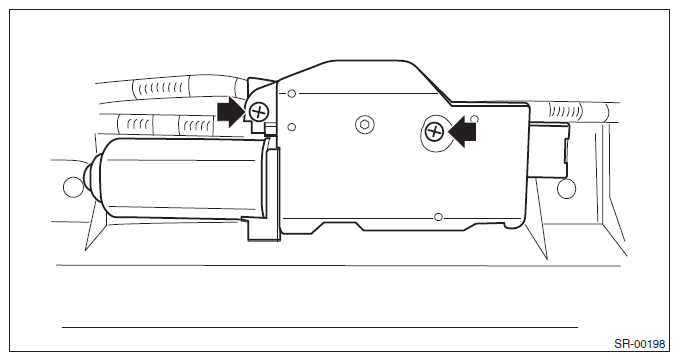

Remove the screw and remove the sunroof motor.

Fig 1: Locating Sunroof Motor Screws
Courtesy of SUBARU OF AMERICA, INC.

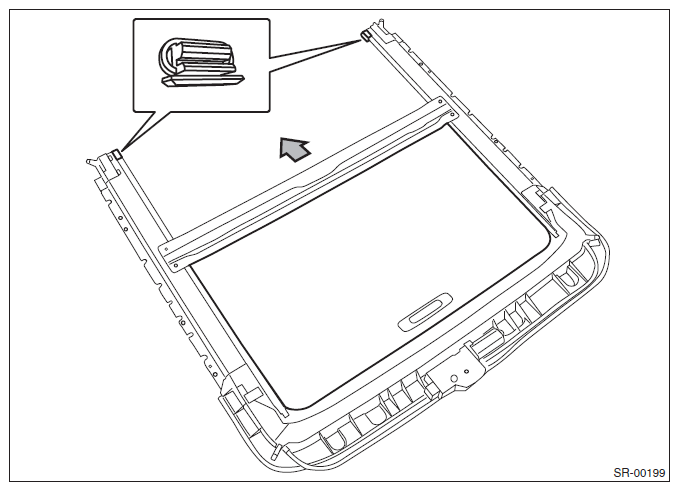

Remove the stopper rubber and pull out the sunshade assembly from the rail assembly - sunroof.

Fig 2: Pulling Out Sunshade Assembly From Rail Assembly - Sunroof
Courtesy of SUBARU OF AMERICA, INC.

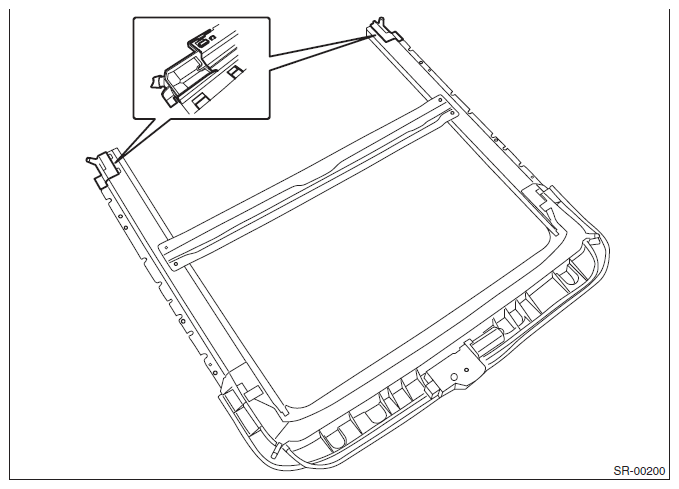

Disconnect the claws and then remove the drain holder.

Fig 3: Drain Holder Claws
Courtesy of SUBARU OF AMERICA, INC.

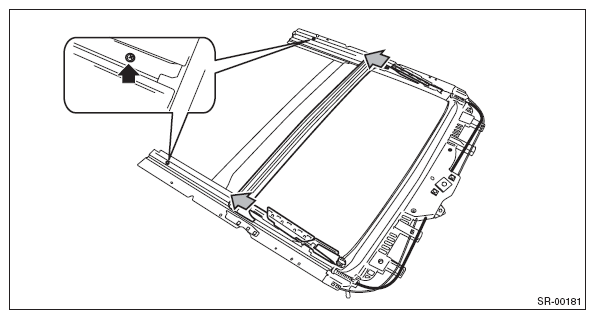

Remove the screw and pull out the cable assembly from the rail assembly - sunroof.

Fig 4: Locating Cable Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
