Rear Seat: Disassembly

Remove the rear seat. <Ref. to REMOVAL , Rear Seat.>
Remove the headrest assembly - rear backrest.
Remove the knob - backrest. (Screw-in type)

Fig 1: Removing Backrest Knob
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips on the backside of the cover COMPL - rear backrest LH.

Fig 2: Locating Rear Backrest LH Cover COMPL Clips
Courtesy of SUBARU OF AMERICA, INC.

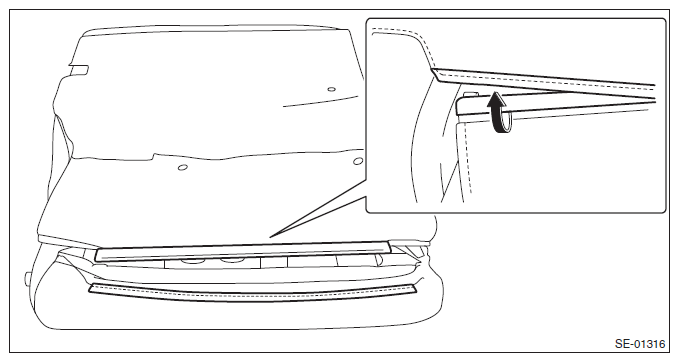

Detach the plastic fastener at the bottom of backrest assembly LH and turn over the cover COMPL - rear backrest LH.

Fig 3: Turning Rear Backrest LH Cover COMPL
Courtesy of SUBARU OF AMERICA, INC.

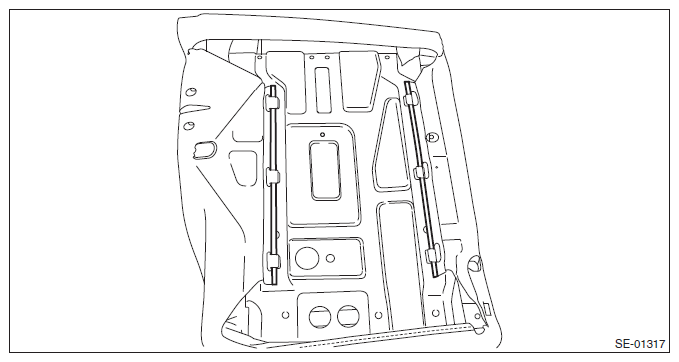

Remove the plastic hooks on the back side of the backrest assembly LH.

Fig 4: Backrest Assembly LH Plastic Hooks
Courtesy of SUBARU OF AMERICA, INC.

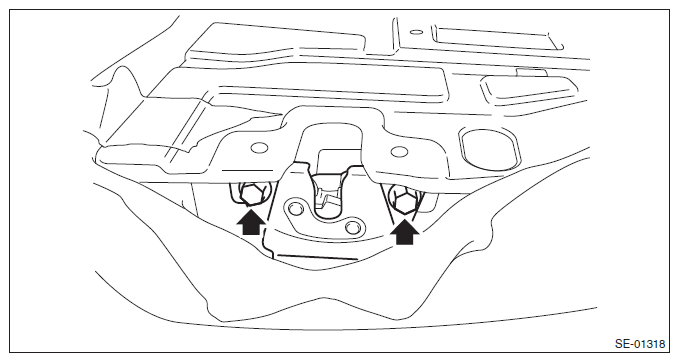

Remove the lock assembly - rear backrest rear LH.

Fig 5: Locating Rear Backrest Rear Lock Assembly Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.

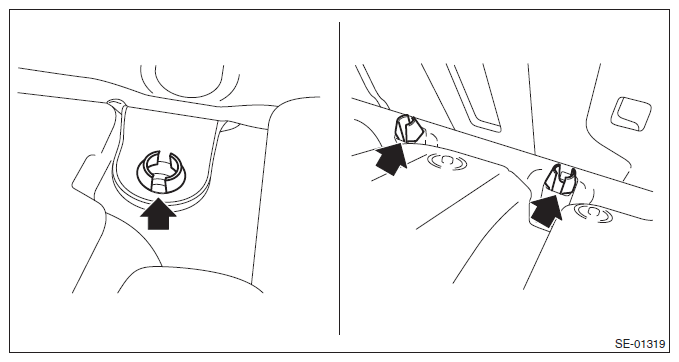

Remove the bushing - headrest and the bushing - lock assembly.

Fig 6: Locating Headrest And Lock Assembly Bushings
Courtesy of SUBARU OF AMERICA, INC.
Remove the pad assembly - main LH from the frame assembly - rear backrest LH.
Remove the hog rings (A) and wire clip (B), then remove the cover COMPL - rear backrest LH.

Fig 7: Rear Backrest LH Cover COMPL Hog Rings And Wire Clip Location
Courtesy of SUBARU OF AMERICA, INC.
Referring to the above steps, disassemble the backrest assembly RH.

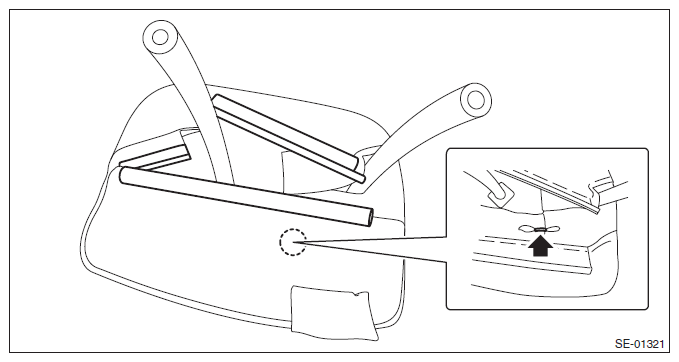

Detach the plastic fastener and hog ring, and then remove the headrest cover.

Fig 8: Locating Headrest Cover Hog Ring
Courtesy of SUBARU OF AMERICA, INC.

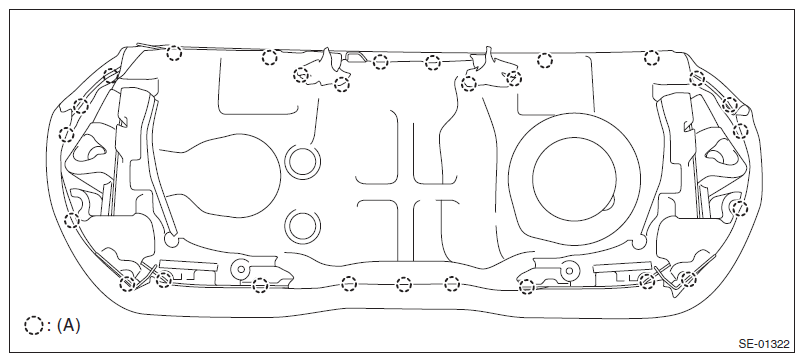

Remove the hog rings (A) on the back side of the rear seat cushion assembly.

Fig 9: Seat Cushion Assembly (Back Side) Hog Rings Location
Courtesy of SUBARU OF AMERICA, INC.

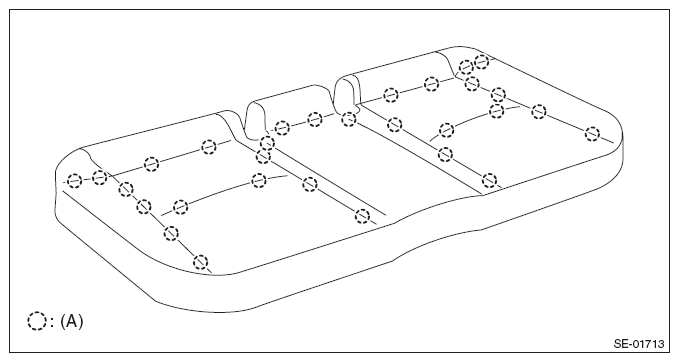

Remove the hog rings (A), then remove the cover - rear cushion.

Fig 10: Rear Cushion Cover Hog Rings

Courtesy of SUBARU OF AMERICA, INC.
